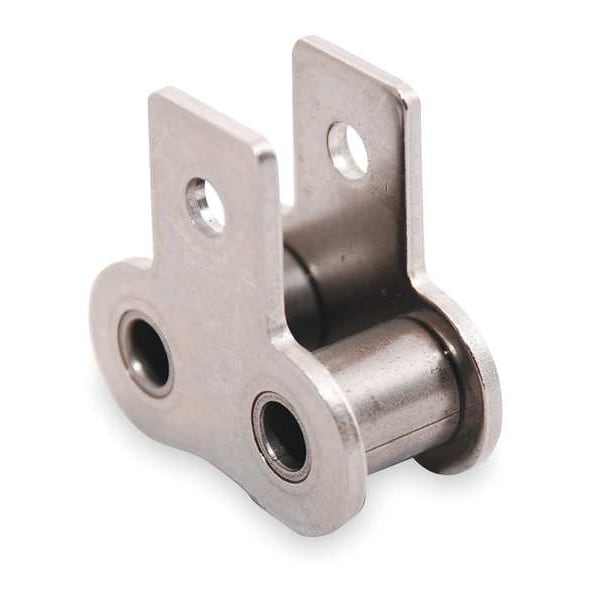

Roller Link, SK-1 Attachment

Mfr # 80ASSK1RL
Zoro # G2226804

$32.15

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Roller Chain Link Type SK-1
Industry Chain Size 80
Chain Link Material 600 Stainless Steel
Industry Chain Pitch 1 in
Number of Strands Single

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Tsubaki
MFR # 80ASSK1RL
Zoro # G2226804
Country of Origin Japan
Category Chain Links

Dimensions

Industry Chain Size	80
Chain Link Overall Width	1.398 in
Chain Roller Dia.	0.625 in
Pin Length	1.398 in
Roller Link Plate Height (In.)	0.949
Overall Width (In.)	1.398
Outside Pin Dia. (In.)	0.312
ANSI Chain Size	80AS
Roller Dia. (In.)	0.625
Width Between Roller Link Plates (In.)	0.625
Pin Length (In.)	1.398
Roller Link Plate Height	0.949 in
Outside Pin Dia.	0.312 in
Width Between Roller Link Plates	0.625 in
Length (In.)	1.000
Inside Pin Dia.	0.312 in
Tab Hole Diameter	0.268 in
Plate Height	0.949 in
Chain Overall Width	1.398 in
Inside Width	5/8 in
Tab Width	0.752 in
Roller Diameter	5/8 in

Details

Roller Chain Link Item	Roller Attachment Link
Roller Chain Link Type	SK-1
Chain Link Material	600 Stainless Steel
Industry Chain Pitch	1 in
Number of Strands	Single
Pin Link Plate Thickness (In.)	0.125
Max. Allowable Load	596 lb
Pin Type	Riveted
Temp. Range	-40 Degrees to 750 Degrees F
Rivet End to Center Line (In.)	0.640
Connecting End to Center Line (In.)	0.758
Pin Link Plate Thickness	0.125 in
Agency Compliance	American National Standards Institute (ANSI)
Item	Roller Attachment Link
Rivet End to Center Line	0.64 in
Lubrication	SAE 10 to SAE 50
Type	SK-1 Attachment
Pitch	1 in
Material	Stainless Steel
Max. Allowable Load (Lb.)	596
Connecting End to Center Line	0.758 in
Finish	Plain
Heavy Series	No
Heavy Series (from Heavy)	Regular
For Chain Style	Stainless Steel Roller Chains
Chain Number	80
Pitch Type	Single Pitch
Attachment Type	Tab
Attachment Location	Two Sides
Working Load Limit	2,400 lb
Centerline to Attachment End	1.396 in
Centerline to Hole Center	0.969 in
Pin Contruction	Riveted Pin
Minimum Operating Temperature	-40 Degrees F
Plate Thickness	0.125 in
Material Grade	600
Attachment Number	SK-1
Standards	ANSI
Tab Orientation	Vertical Upward
Link Type	Roller Attachment Link
Number of Tab Holes	1
Chain Construction	Riveted Pin
For Chain Number	80
Features	Greater Fatigue Strength, Higher Horsepower Ratings, Longer Wear Life
Maximum Operating Temperature	750 Degrees F
Link Style	Roller Attachment Link
Single or Double Strand	Single

Description

Roller Attachment Link, Attachment Number SK-1, Attachment Type Tab, Material Stainless Steel, Chain Overall Width 1.398 in, Chain Number 80, Roller Diameter 5/8 in, Finish Plain, Pitch 1 in, Link Type Roller Attachment, Attachment Location Two Sides, Centerline to Attachment End 1.396 in, Centerline to Hole Center 0.969 in, Chain Construction Riveted Pin, Extended Pin Diameter Not Applicable, Features Greater Fatigue Strength, Higher Horsepower Ratings, Longer Wear Life, Heavy Series No
