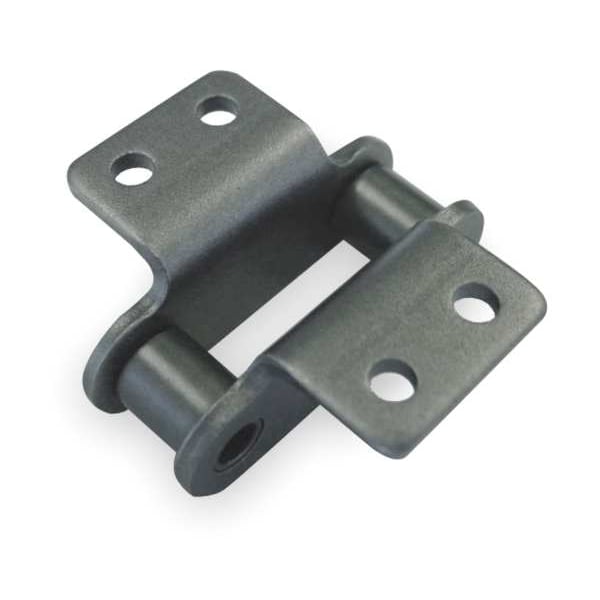

Roller Link, K-2 Attachment

Mfr # C2060HK2RL
Zoro # G2437075

$7.89

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Roller Chain Link Type K-2 Heavy Conveyor
Industry Chain Size C2060H
Chain Link Material Carbon Steel
Industry Chain Pitch 1 1/2 in
Number of Strands Single

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Tsubaki
MFR # C2060HK2RL
Zoro # G2437075
Country of Origin Japan
Category Chain Links

Dimensions

Industry Chain Size	C2060H
Chain Link Overall Width	1.225 in
Chain Roller Dia.	0.469 in
Length (In.)	1.500
Roller Link Plate Height	0.713 in
Outside Pin Dia.	0.234 in
Outside Pin Dia. (In.)	0.234
Overall Width (In.)	1.225
Width Between Roller Link Plates (In.)	0.500
Width Between Roller Link Plates	0.5 in
Pin Length (In.)	1.225
Pin Length	1.225 in
Roller Link Plate Height (In.)	0.713
Roller Dia. (In.)	0.469
ANSI Chain Size	C2060H
Inside Pin Dia.	0.234 in
Roller Diameter	15/32 in
Extended Pin Diameter	0.234 in
Chain Overall Width	1.225 in
Plate Height	0.713 in

Details

Roller Chain Link Item	Roller Attachment Link
Roller Chain Link Type	K-2 Heavy Conveyor
Chain Link Material	Carbon Steel
Industry Chain Pitch	1 1/2 in
Number of Strands	Single
Rivet End to Center Line (In.)	0.573
Tensile Strength	9,040 lb/in
Item	Roller Attachment Link
Pin Link Plate Thickness	0.125 in
Max. Allowable Load (Lb.)	1410
Pin Type	Riveted
Type	K-2 Attachment
Agency Compliance	American National Standards Institute (ANSI)
Pitch	1 1/2 in
Connecting End to Center Line	0.652 in
Lubrication	SAE 10 to SAE 50
Temp. Range	15 Degrees to 300 Degrees F
Connecting End to Center Line (In.)	0.652
Material	Steel
Rivet End to Center Line	0.573 in
Max. Allowable Load	1,410 lb
Pin Link Plate Thickness (In.)	0.125
Tensile Strength (Lb.)	9040
Finish	Plain
Pin Contruction	Riveted Pin
Centerline to Attachment End	0.652 in
Chain Number	C2060H
Standards	ANSI
Link Type	Roller Attachment Link
For Chain Style	Standard Conveyor Chains
Attachment Type	Tab
Attachment Type (Broad - application)	Tab
Maximum Operating Temperature	300 Degrees F
Attachment Number	K-2
For Chain Number	C2060H
Number of Tab Holes	1
Minimum Operating Temperature	15 Degrees F
Attachment Type (Broad - style)	Tab
Centerline to Hole Center	0.573 in
Plate Thickness	0.5 in
Link Style	Roller Attachment Link

Description

Roller Attachment Link, Attachment Number K-2, Attachment Type Tab, Material Steel, Chain Overall Width 1.225 in, Chain Number C2060H, Roller Diameter 15/32 in, Finish Plain, Pitch 1 1/2 in, Link Type Roller Attachment, Centerline to Attachment End 0.652 in, Centerline to Hole Center 0.573 in, Extended Pin Diameter 0.234 in, Lubrication SAE 10 to SAE 50, Maximum Operating Temperature 300 Degrees F, Minimum Operating Temperature 15 Degrees F, Number of Tab Holes 1, Pin Contruction Riveted Pin
