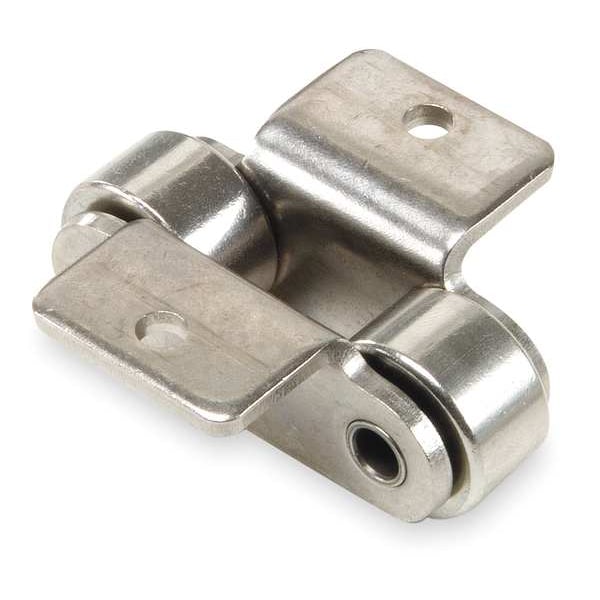

Roller Link, K-1 Attachment

Mfr # C2052ASK1RL
Zoro # G0627261

$27.85

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Roller Chain Link Type K-1 Conveyor
Industry Chain Size C2052
Chain Link Material 600 Stainless Steel
Industry Chain Pitch 1 1/4 in
Number of Strands Single

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Tsubaki
MFR # C2052ASK1RL
Zoro # G0627261
Country of Origin Japan
Category Chain Links

Dimensions

Industry Chain Size	C2052
Chain Link Overall Width	0.878 in
Chain Roller Dia.	0.75 in
Inside Pin Dia.	0.2 in
Roller Link Plate Height	0.591 in
Width Between Roller Link Plates	0.375 in
Width Between Roller Link Plates (In.)	0.375
Overall Width (In.)	0.878
Pin Length (In.)	0.875
Roller Dia. (In.)	0.750
Pin Length	0.875 in
Roller Link Plate Height (In.)	0.591
Outside Pin Dia.	0.2 in
Outside Pin Dia. (In.)	0.200
Length (In.)	1.250
ANSI Chain Size	C2052AS
Tab Hole Diameter	0.205 in
Inside Width	3/8 in
Roller Diameter	3/4 in
Chain Overall Width	0.878 in
Tab Width	0.937 in
Plate Height	0.591 in

Details

Roller Chain Link Item	Roller Attachment Link
Roller Chain Link Type	K-1 Conveyor
Chain Link Material	600 Stainless Steel
Industry Chain Pitch	1 1/4 in
Number of Strands	Single
Connecting End to Center Line	0.469 in
Connecting End to Center Line (In.)	0.469
Pitch	1 1/4 in
Type	K-1 Attachment
Item	Roller Attachment Link
Material	Stainless Steel
Lubrication	SAE 10 to SAE 50
Max. Allowable Load	231 lb
Rivet End to Center Line (In.)	0.406
Max. Allowable Load (Lb.)	231
Pin Type	Riveted
Agency Compliance	American National Standards Institute (ANSI)
Pin Link Plate Thickness (In.)	0.080
Pin Link Plate Thickness	0.08 in
Temp. Range	-40 Degrees to 750 Degrees F
Rivet End to Center Line	0.406 in
Finish	Plain
Attachment Number	K-1
Attachment Type (Broad - style)	Tab
Link Type	Roller Attachment Link
Chain Number	C2052
Standards	ANSI
Attachment Type	Tab
Working Load Limit	970 lb
Minimum Operating Temperature	-40 Degrees F
For Chain Style	Stainless Steel Conveyor Chains
Centerline to Hole Center	0.626 in
Centerline to Attachment End	0.953 in
Material Grade	600
Number of Tab Holes	1
Maximum Operating Temperature	750 Degrees F
Attachment Location	Two Sides
Plate Thickness	0.08 in
Heavy Series	No
Chain Construction	Riveted Pin
Pitch Type	Double Pitch
Attachment Type (Broad - application)	Tab
For Chain Number	C2052
Pin Contruction	Riveted Pin
Tab Orientation	Horizontal Outward
Link Style	Roller Attachment Link

Description

Roller Attachment Link, Attachment Number K-1, Attachment Type Tab, Material Stainless Steel, Chain Overall Width 0.878 in, Chain Number C2052, Roller Diameter 3/4 in, Finish Plain, Pitch 1 1/4 in, Link Type Roller Attachment, Attachment Location Two Sides, Centerline to Attachment End 0.953 in, Centerline to Hole Center 0.626 in, Chain Construction Riveted Pin, Extended Pin Diameter Not Applicable, Heavy Series No, Inside Width 3/8 in, Lubrication SAE 10 to SAE 50, Material Grade 600
