Tsubaki

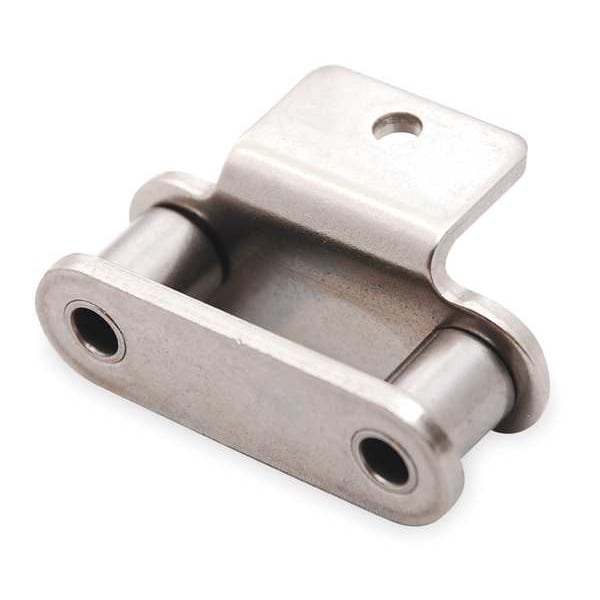

Roller Link, A-1 Attachment

product price: $14.99
/ea
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Roller Chain Link Type A-1 Conveyor
  • Industry Chain Size C2040
  • Chain Link Material 600 Stainless Steel
  • Industry Chain Pitch 1 in
  • Number of Strands Single
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Industry Chain Size C2040
Chain Link Overall Width 0.717 in
Chain Roller Dia. 0.312 in
Roller Dia. (In.) 0.312
Outside Pin Dia. (In.) 0.156
Inside Pin Dia. 0.156 in
Length (In.) 1.000
Outside Pin Dia. 0.156 in
Overall Width (In.) 0.717
Roller Link Plate Height (In.) 0.472
Roller Link Plate Height 0.472 in
Pin Length 0.705 in
Width Between Roller Link Plates (In.) 0.312
Width Between Roller Link Plates 0.312 in
Pin Length (In.) 0.705
ANSI Chain Size C2040AS
Inside Width 19/64 in
Plate Height 0.472 in
Roller Diameter 19/64 in
Tab Width 0.752 in
Tab Hole Diameter 0.142 in
Chain Overall Width 0.717 in

Description

Roller Attachment Link, Attachment Number A-1, Attachment Type Tab, Material Stainless Steel, Chain Overall Width 0.717 in, Chain Number C2040, Roller Diameter 19/64 in, Finish Plain, Pitch 1 in, Link Type Roller Attachment, Attachment Location One Side, Centerline to Attachment End 0.76 in, Centerline to Hole Center 0.5 in, Chain Construction Riveted Pin, Extended Pin Diameter Not Applicable, Heavy Series No, Inside Width 19/64 in, Lubrication SAE 10 to SAE 50, Material Grade 600
