Shop All Chain Links
Tsubaki

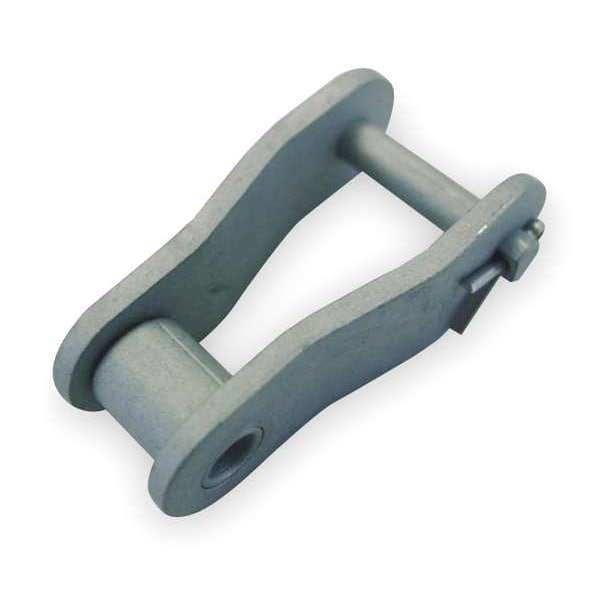

Offset Roller Link, Standard

product price: $10.29
/ea
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Roller Chain Link Type Conveyor
  • Industry Chain Size C2040
  • Chain Link Material Coated Steel
  • Industry Chain Pitch 1 in
  • Number of Strands 1
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Industry Chain Size C2040
Chain Link Overall Width 0.717 in
Chain Roller Dia. 0.312 in
Roller Link Plate Height 0.472 in
Outside Pin Dia. 0.156 in
Width Between Roller Link Plates 0.312 in
Inside Pin Dia. 0.156 in
Width Between Roller Link Plates (In.) 0.312
Pin Length 0.705 in
Overall Width (In.) 0.717
Pin Length (In.) 0.705
Outside Pin Dia. (In.) 0.156
Length (In.) 1.000
ANSI Chain Size C2040
Roller Dia. (In.) 0.312
Roller Link Plate Height (In.) 0.472
Roller Diameter 19/64 in
Chain Overall Width 45/64 in
Plate Height 15/32 in
Inside Width 5/16 in
Pin Outside Diameter 5/32 in

Description

Offset Link, Chain Construction Riveted Pin, Material Steel, Chain Overall Width 45/64 in, Chain Number C2040, Roller Diameter 19/64 in, Finish Coated, Pitch 1 in, Link Type Offset, Number of Strands 1, Application Conveyors, Heavy Series No, Inside Width 5/16 in, Lubrication SAE 10 to SAE 50, Maximum Operating Temperature 302 Degrees F, Minimum Operating Temperature 14 Degrees F, Pin Contruction Riveted Pin, Pin Outside Diameter 5/32 in, Pitch Type Double Pitch, Plate Height 15/32 in
