Shop All Chain Links
Tsubaki

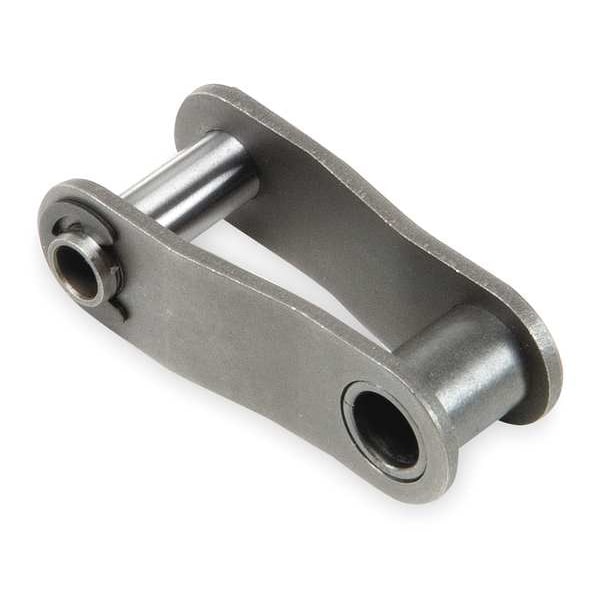

Offset Link, Hollow Pin

product price: $9.49
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Roller Chain Link Type Hollow Pin Conveyor
  • Industry Chain Size C2040
  • Chain Link Material Carbon Steel
  • Industry Chain Pitch 1 in
  • Number of Strands 1
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Industry Chain Size C2040
Chain Link Overall Width 0.689 in
Chain Roller Dia. 0.312 in
Bushing Dia. 0.312 in
Width Between Roller Link Plates 0.312 in
Inside Pin Dia. 0.224 in
Width Between Roller Link Plates (In.) 0.312
Length (In.) 1.000
Roller Link Plate Height 0.472 in
Outside Pin Dia. (In.) 0.224
Pin Length (In.) 0.689
Pin Length 0.689 in
Bushing Dia. (In.) 0.312
Overall Width (In.) 0.689
Outside Pin Dia. 0.224 in
Roller Dia. (In.) 0.312
Roller Link Plate Height (In.) 0.472
ANSI Chain Size C2040
Inside Width 5/16 in
Pin Outside Diameter 7/32 in
Plate Height 15/32 in
Chain Overall Width 11/16 in
Roller Diameter 19/64 in

Description

Offset Link, Chain Construction Riveted Pin, Material Steel, Chain Overall Width 11/16 in, Chain Number C2040, Roller Diameter 19/64 in, Pitch 1 in, Link Type Offset, Number of Strands 1, Heavy Series Yes, Inside Width 5/16 in, Lubrication SAE 10 to SAE 50, Maximum Operating Temperature 300 Degrees F, Minimum Operating Temperature 15 Degrees F, Pin Contruction Riveted Pin, Pin Outside Diameter 7/32 in, Pitch Type Double Pitch, Plate Height 15/32 in, Plate Thickness 1/16 in
