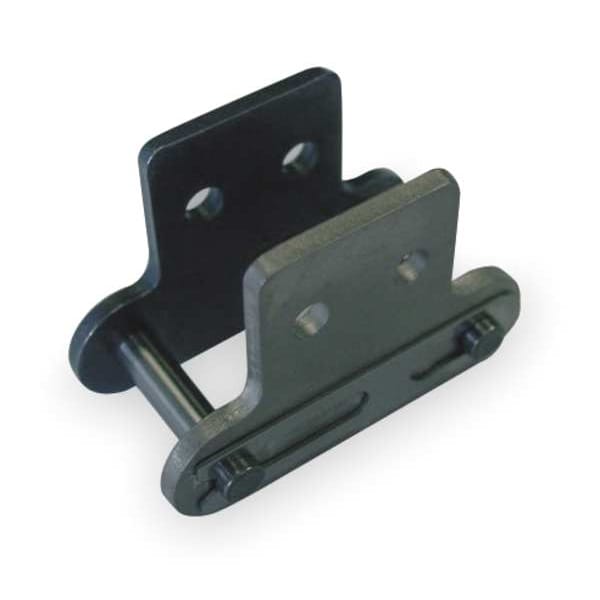

Connecting Roller Link, SK-2 Attachment

Mfr # C2040SK2CL
Zoro # G1093416

$5.25

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Roller Chain Link Type SK-2 Conveyor
Industry Chain Size C2040
Chain Link Material Carbon Steel
Industry Chain Pitch 1 in
Number of Strands Single

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Tsubaki
MFR # C2040SK2CL
Zoro # G1093416
Country of Origin Japan
Category Chain Links

Dimensions

Industry Chain Size	C2040
Chain Link Overall Width	0.717 in
Chain Roller Dia.	0.312 in
Outside Pin Dia.	0.156 in
Pin Length (In.)	0.705
Overall Width (In.)	0.717
Outside Pin Dia. (In.)	0.156
ANSI Chain Size	C2040
Width Between Roller Link Plates	0.312 in
Roller Link Plate Height (In.)	0.472
Inside Pin Dia.	0.156 in
Length (In.)	1.000
Pin Length	0.705 in
Width Between Roller Link Plates (In.)	0.312
Roller Dia. (In.)	0.312
Roller Link Plate Height	0.472 in
Roller Diameter	19/64 in
Extended Pin Diameter	0.156 in
Plate Height	0.472 in
Chain Overall Width	0.717 in

Details

Roller Chain Link Item	Attachment Link
Roller Chain Link Type	SK-2 Conveyor
Chain Link Material	Carbon Steel
Industry Chain Pitch	1 in
Number of Strands	Single
Max. Allowable Load (Lb.)	595
Lubrication	SAE 10 to SAE 50
Pin Type	Riveted
Material	Steel
Connecting End to Center Line (In.)	0.380
Rivet End to Center Line	0.325 in
Agency Compliance	American National Standards Institute (ANSI)
Type	SK-2 Attachment
Pitch	1 in
Pin Link Plate Thickness (In.)	0.060
Tensile Strength (Lb.)	3750
Tensile Strength	3,750 lb/in
Connecting End to Center Line	0.38 in
Item	Attachment Link
Temp. Range	15 Degrees to 300 Degrees F
Pin Link Plate Thickness	0.06 in
Rivet End to Center Line (In.)	0.325
Max. Allowable Load	595 lb
Finish	Plain
For Chain Number	C2040
Attachment Type	Tab
Centerline to Attachment End	0.38 in
Attachment Type (Broad - style)	Tab
Plate Thickness	0.312 in
Number of Tab Holes	1
Link Type	Attachment Link
Minimum Operating Temperature	15 Degrees F
Maximum Operating Temperature	300 Degrees F
Chain Number	C2040
For Chain Style	Standard Conveyor Chains
Centerline to Hole Center	0.325 in
Attachment Type (Broad - application)	Tab
Standards	ANSI
Attachment Number	SK-2
Pin Contruction	Riveted Pin
Link Style	Attachment Link

Description

Attachment Link, Attachment Number SK-2, Attachment Type Tab, Material Steel, Chain Overall Width 0.717 in, Chain Number C2040, Roller Diameter 19/64 in, Finish Plain, Pitch 1 in, Link Type Attachment, Centerline to Attachment End 0.38 in, Centerline to Hole Center 0.325 in, Extended Pin Diameter 0.156 in, Lubrication SAE 10 to SAE 50, Maximum Operating Temperature 300 Degrees F, Minimum Operating Temperature 15 Degrees F, Number of Tab Holes 1, Pin Contruction Riveted Pin, Plate Height 0.472 in
