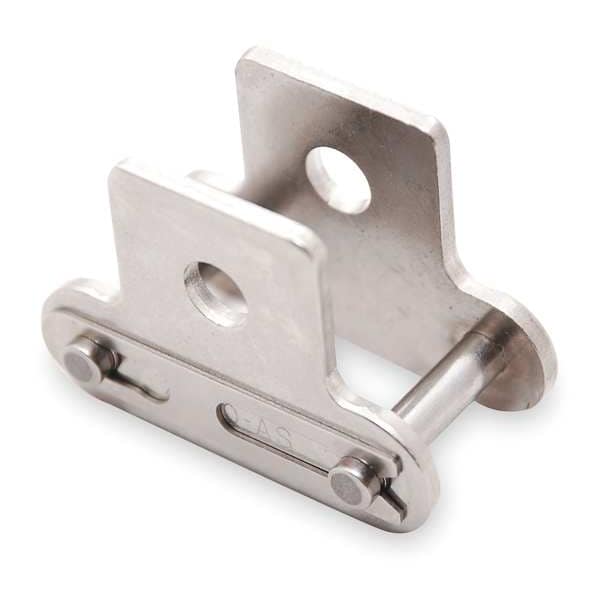

Connecting Roller Link, SA-1 Attachment

Mfr # C2050ASSA1CL
Zoro # G2446841

$17.99

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Roller Chain Link Type SA-1 Conveyor
Industry Chain Size C2050
Chain Link Material 600 Stainless Steel
Industry Chain Pitch 1 1/4 in
Number of Strands Single

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Tsubaki
MFR # C2050ASSA1CL
Zoro # G2446841
Country of Origin Japan
Category Chain Links

Dimensions

Industry Chain Size	C2050
Chain Link Overall Width	0.878 in
Chain Roller Dia.	0.4 in
Pin Length (In.)	0.875
Roller Link Plate Height (In.)	0.591
Roller Link Plate Height	0.591 in
Width Between Roller Link Plates	0.375 in
Length (In.)	1.250
ANSI Chain Size	C2050AS
Outside Pin Dia.	0.2 in
Outside Pin Dia. (In.)	0.200
Pin Length	0.875 in
Overall Width (In.)	0.878
Inside Pin Dia.	0.2 in
Roller Dia. (In.)	0.400
Width Between Roller Link Plates (In.)	0.375
Tab Width	0.937 in
Plate Height	0.591 in
Chain Overall Width	0.878 in
Inside Width	3/8 in
Tab Hole Diameter	0.268 in
Roller Diameter	25/64 in

Details

Roller Chain Link Item	Attachment Link
Roller Chain Link Type	SA-1 Conveyor
Chain Link Material	600 Stainless Steel
Industry Chain Pitch	1 1/4 in
Number of Strands	Single
Lubrication	SAE 10 to SAE 50
Pin Type	Riveted
Pin Link Plate Thickness	0.08 in
Max. Allowable Load (Lb.)	231
Connecting End to Center Line (In.)	0.469
Item	Attachment Link
Temp. Range	-40 Degrees to 750 Degrees F
Rivet End to Center Line (In.)	0.406
Rivet End to Center Line	0.406 in
Max. Allowable Load	231 lb
Connecting End to Center Line	0.469 in
Pitch	1 1/4 in
Pin Link Plate Thickness (In.)	0.080
Material	Stainless Steel
Agency Compliance	American National Standards Institute (ANSI)
Type	SA-1 Attachment
Finish	Plain
Link Type	Attachment Link
Minimum Operating Temperature	-40 Degrees F
Working Load Limit	970 lb
Attachment Location	One Side
Chain Construction	Riveted Pin
Plate Thickness	0.08 in
Heavy Series	No
Tab Orientation	Vertical Upward
Standards	ANSI
Chain Number	C2050
Attachment Type (Broad - application)	Tab
Centerline to Hole Center	0.563 in
Pin Contruction	Riveted Pin
Attachment Type	Tab
For Chain Style	Stainless Steel Conveyor Chains
Number of Tab Holes	1
Attachment Type (Broad - style)	Tab
Maximum Operating Temperature	750 Degrees F
For Chain Number	C2050
Centerline to Attachment End	0.969 in
Pitch Type	Double Pitch
Material Grade	600
Attachment Number	SA-1
Link Style	Attachment Link

Description

Attachment Link, Attachment Number SA-1, Attachment Type Tab, Material Stainless Steel, Chain Overall Width 0.878 in, Chain Number C2050, Roller Diameter 25/64 in, Finish Plain, Pitch 1 1/4 in, Link Type Attachment, Attachment Location One Side, Centerline to Attachment End 0.969 in, Centerline to Hole Center 0.563 in, Chain Construction Riveted Pin, Extended Pin Diameter Not Applicable, Heavy Series No, Inside Width 3/8 in, Lubrication SAE 10 to SAE 50, Material Grade 600
