Shop All Chain Links
Tsubaki

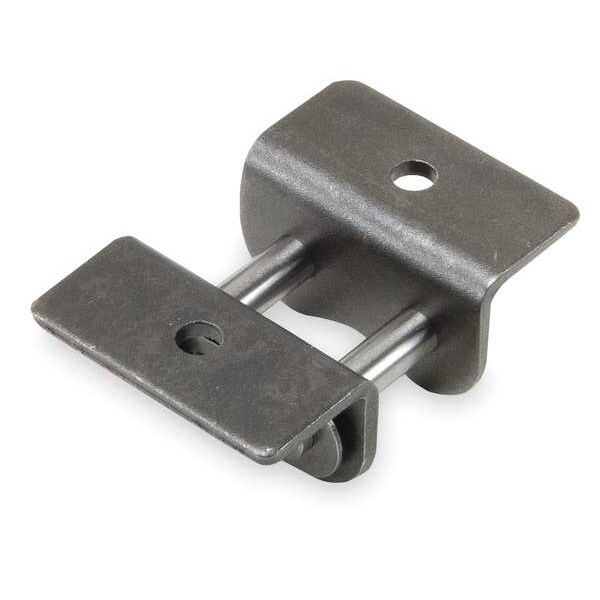

Connecting Roller Link, K-1 Attachment

product price: $9.99
/ea
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Roller Chain Link Type WK-1
  • Industry Chain Size 80
  • Chain Link Material Carbon Steel
  • Industry Chain Pitch 1 in
  • Number of Strands Single
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Industry Chain Size 80
Chain Link Overall Width 1.398 in
Chain Roller Dia. 0.625 in
Overall Width (In.) 1.398
Roller Link Plate Height (In.) 0.949
Pin Length 1.398 in
Roller Dia. (In.) 0.625
Outside Pin Dia. 0.312 in
ANSI Chain Size 80
Inside Pin Dia. 0.312 in
Width Between Roller Link Plates 0.625 in
Outside Pin Dia. (In.) 0.312
Width Between Roller Link Plates (In.) 0.625
Length (In.) 1.000
Pin Length (In.) 1.398
Roller Link Plate Height 0.949 in
Extended Pin Diameter 0.312 in
Chain Overall Width 1.398 in
Plate Height 0.949 in
Roller Diameter 5/8 in

Description

Attachment Link, Attachment Number WK-1, Attachment Type Wide Contour Tab, Material Steel, Chain Overall Width 1.398 in, Chain Number 80, Roller Diameter 5/8 in, Finish Plain, Pitch 1 in, Link Type Attachment, Centerline to Attachment End 0.758 in, Centerline to Hole Center 0.64 in, Extended Pin Diameter 0.312 in, Lubrication SAE 10 to SAE 50, Maximum Operating Temperature 300 Degrees F, Minimum Operating Temperature 15 Degrees F, Number of Tab Holes 1, Pin Contruction Cottered Pin
