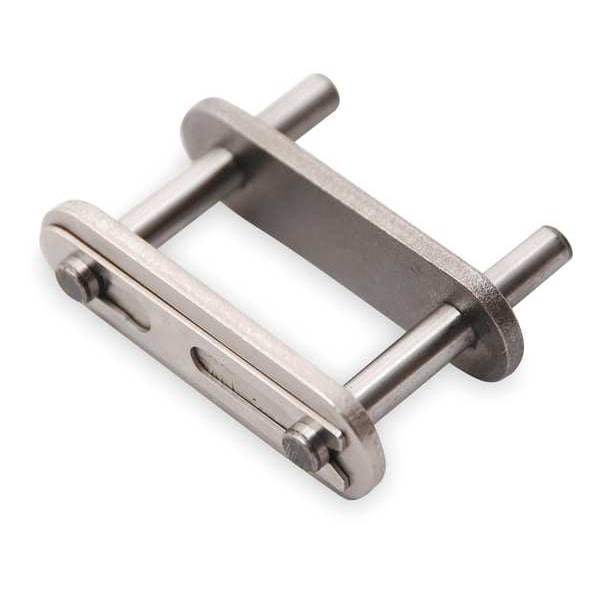

Connecting Roller Link, D-3 Attachment

Mfr # C2050LD3CL
Zoro # G0599715

$10.99

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Roller Chain Link Type D-3 Lube Free Conveyor
Industry Chain Size C2050
Chain Link Material Carbon Steel
Industry Chain Pitch 1 1/4 in
Number of Strands Single

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Tsubaki
MFR # C2050LD3CL
Zoro # G0599715
Country of Origin Japan
Category Chain Links

Dimensions

Industry Chain Size	C2050
Chain Link Overall Width	0.878 in
Chain Roller Dia.	0.4 in
Inside Pin Dia.	0.2 in
Width Between Roller Link Plates	0.375 in
Roller Dia. (In.)	0.400
Length (In.)	1.250
ANSI Chain Size	C2050L
Pin Length	0.875 in
Roller Link Plate Height	0.591 in
Roller Link Plate Height (In.)	0.591
Pin Length (In.)	0.875
Outside Pin Dia. (In.)	0.200
Overall Width (In.)	0.878
Width Between Roller Link Plates (In.)	0.375
Outside Pin Dia.	0.2 in
Plate Height	0.591 in
Roller Diameter	25/64 in
Chain Overall Width	0.878 in
Extended Pin Diameter	0.2 in

Details

Roller Chain Link Item	Attachment Link
Roller Chain Link Type	D-3 Lube Free Conveyor
Chain Link Material	Carbon Steel
Industry Chain Pitch	1 1/4 in
Number of Strands	Single
Connecting End to Center Line	0.469 in
Pin Link Plate Thickness	0.08 in
Tensile Strength	5,730 lb/in
Lubrication	Self Lube
Item	Attachment Link
Temp. Range	14 Degrees to 302 Degrees F
Pin Type	Riveted
Connecting End to Center Line (In.)	0.469
Pin Link Plate Thickness (In.)	0.080
Tensile Strength (Lb.)	5730
Agency Compliance	American National Standards Institute (ANSI)
Max. Allowable Load	970 lb
Pitch	1 1/4 in
Type	D-3 Attachment
Rivet End to Center Line (In.)	0.406
Max. Allowable Load (Lb.)	970
Material	Steel
Rivet End to Center Line	0.406 in
Finish	Black Oxide
Chain Number	C2050
Attachment Number	D-3
Number of Tab Holes	1
Attachment Type (Broad - application)	Pin
Minimum Operating Temperature	14 Degrees F
For Chain Number	C2050
Link Type	Attachment Link
Centerline to Hole Center	0.406 in
Standards	ANSI
Pin Contruction	Riveted Pin
Attachment Type	Pin
Plate Thickness	0.375 in
For Chain Style	Lube-Free Conveyor Chains
Centerline to Attachment End	0.469 in
Attachment Type (Broad - style)	Pin
Maximum Operating Temperature	302 Degrees F
Link Style	Attachment Link

Description

Attachment Link, Attachment Number D-3, Attachment Type Pin, Material Steel, Chain Overall Width 0.878 in, Chain Number C2050, Roller Diameter 25/64 in, Finish Black Oxide, Pitch 1 1/4 in, Link Type Attachment, Centerline to Attachment End 0.469 in, Centerline to Hole Center 0.406 in, Extended Pin Diameter 0.2 in, Lubrication Self Lube, Maximum Operating Temperature 302 Degrees F, Minimum Operating Temperature 14 Degrees F, Number of Tab Holes 1, Pin Contruction Riveted Pin
