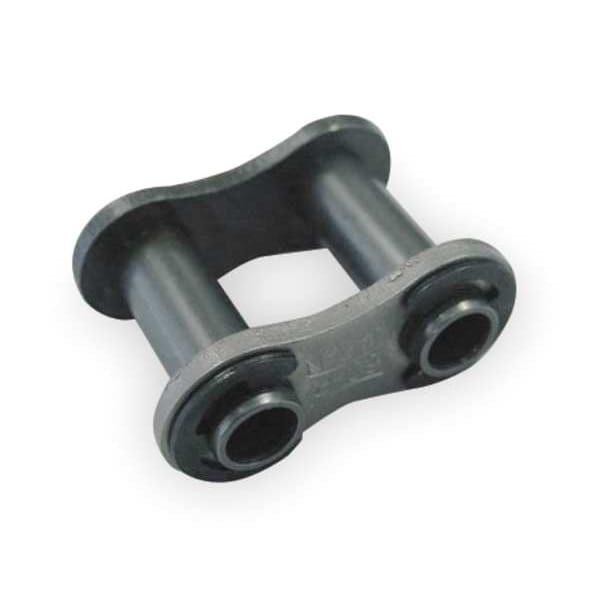

Connecting Link, Hollow Pin

Mfr # 80HPCL
Zoro # G0372382

$26.59

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Roller Chain Link Type Hollow Pin
Industry Chain Size 80
Chain Link Material Carbon Steel
Industry Chain Pitch 1 in
Number of Strands 1

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Tsubaki
MFR # 80HPCL
Zoro # G0372382
Country of Origin Japan
Category Chain Links

Dimensions

Industry Chain Size	80
Chain Link Overall Width	1.398 in
Chain Roller Dia.	0.625 in
Bushing Dia. (In.)	0.625
Outside Pin Dia.	0.448 in
Roller Link Plate Height	0.949 in
Inside Pin Dia.	0.448 in
Outside Pin Dia. (In.)	0.448
Roller Link Plate Height (In.)	0.949
Pin Length (In.)	1.341
Roller Dia. (In.)	0.625
Width Between Roller Link Plates (In.)	0.625
Width Between Roller Link Plates	0.625 in
ANSI Chain Size	80
Bushing Dia.	0.625 in
Pin Length	1.341 in
Overall Width (In.)	1.398
Length (In.)	1.000
Inside Width	5/8 in
Roller Diameter	5/8 in
Pin Outside Diameter	29/64 in
Chain Overall Width	1 11/32 in
Plate Height	61/64 in

Details

Roller Chain Link Item	Connecting Link
Roller Chain Link Type	Hollow Pin
Chain Link Material	Carbon Steel
Industry Chain Pitch	1 in
Number of Strands	1
Max. Allowable Load (Lb.)	1720
Tensile Strength	10,800 lbf
Pitch	1 in
Pin Type	Cottered
Item	Connecting Link
Material	Stainless Steel
Breaking Strength (Lb.)	1720
Pin Link Plate Thickness (In.)	0.125
Rivet End to Center Line	0.64 in
Pin Link Plate Thickness	0.125 in
Breaking Strength	1,720 lb
Lubrication	SAE 10 to SAE 50
Max. Allowable Load	1,720 lb
Temp. Range	15 Degrees to 300 Degrees F
Connecting End to Center Line (In.)	0.701
Tensile Strength (Lb.)	10,800
Type	Hollow Pin
Agency Compliance	American National Standards Institute (ANSI)
Rivet End to Center Line (In.)	0.640
Connecting End to Center Line	0.701 in
Finish	Plain
Series	RS
Chain Construction	Cottered Pin
Features	Cross Rod Use Without Disconnecting Chain
Heavy Series	No
Link Type	Connecting Link
Maximum Operating Temperature	300 Degrees F
Roller Chain Standard	ANSI
Working Load Limit	1,720 lb
Minimum Operating Temperature	15 Degrees F
Heavy Series (from Heavy)	Regular
Pin Contruction	Cottered Pin
For Chain Number	80
Pitch Type	Single Pitch
Chain Number	80
For Chain Style	Stainless Steel Roller Chains
Plate Thickness	0.125 in
Standards	ANSI
Link Style	Connecting Link
Single or Double Strand	Single

Description

Connecting Link, Chain Construction Cottered Pin, Material Stainless Steel, Chain Overall Width 1 11/32 in, Chain Number 80, Roller Diameter 5/8 in, Finish Plain, Pitch 1 in, Link Type Connecting, Number of Strands 1, Features Cross Rod Use Without Disconnecting Chain, Heavy Series No, Inside Width 5/8 in, Lubrication SAE 10 to SAE 50, Maximum Operating Temperature 300 Degrees F, Minimum Operating Temperature 15 Degrees F, Pin Contruction Cottered Pin, Pin Outside Diameter 29/64 in
