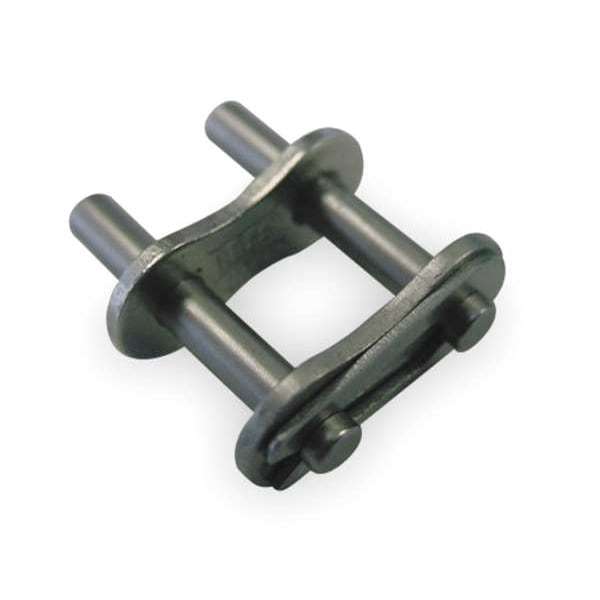

Connecting Link, D-3 Attachment, PK5

Mfr # 50NPD3CL
Zoro # G3010174

$43.69

/pk 5, $8.74/ea

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Roller Chain Link Type D-3
Industry Chain Size 50
Chain Link Material Nickel Plated Steel
Industry Chain Pitch 5/8 in
Number of Strands Single

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Tsubaki
MFR # 50NPD3CL
Zoro # G3010174
Country of Origin Japan
Category Chain Links

Dimensions

Industry Chain Size	50
Chain Link Overall Width	0.878 in
Chain Roller Dia.	0.4 in
ANSI Chain Size	50NP
Width Between Roller Link Plates	0.375 in
Width Between Roller Link Plates (In.)	0.375
Outside Pin Dia. (In.)	0.200
Pin Length	0.878 in
Overall Width (In.)	0.878
Roller Link Plate Height	0.591 in
Pin Length (In.)	0.878
Inside Pin Dia.	0.2 in
Roller Link Plate Height (In.)	0.591
Length (In.)	0.625
Roller Dia. (In.)	0.400
Outside Pin Dia.	0.2 in
Plate Height	0.591 in
Roller Diameter	25/64 in
Extended Pin Diameter	0.2 in
Chain Overall Width	0.878 in

Details

Roller Chain Link Item	Attachment Link
Roller Chain Link Type	D-3
Chain Link Material	Nickel Plated Steel
Industry Chain Pitch	5/8 in
Number of Strands	Single
Connecting End to Center Line	0.472 in
Max. Allowable Load (Lb.)	970
Pin Link Plate Thickness	0.08 in
Pin Link Plate Thickness (In.)	0.080
Tensile Strength (Lb.)	6170
Material	Steel
Rivet End to Center Line (In.)	0.406
Tensile Strength	6,170 lb/in
Pin Type	Riveted
Lubrication	SAE 10 to SAE 50
Type	D-3 Attachment
Agency Compliance	American National Standards Institute (ANSI)
Item	Attachment Link
Rivet End to Center Line	0.406 in
Max. Allowable Load	970 lb
Connecting End to Center Line (In.)	0.472
Pitch	5/8 in
Temp. Range	14 Degrees to 302 Degrees F
Finish	Nickel Plated
Attachment Type	Pin
Maximum Operating Temperature	302 Degrees F
Pin Contruction	Riveted Pin
Attachment Number	D-3
Minimum Operating Temperature	14 Degrees F
Chain Number	50
Centerline to Hole Center	0.406 in
Number of Tab Holes	1
Centerline to Attachment End	0.472 in
Link Type	Attachment Link
For Chain Style	Nickel-Plated Steel Roller Chains
For Chain Number	50
Standards	ANSI
Plate Thickness	0.375 in
Link Style	Attachment Link
Single or Double Strand	Single

Description

Attachment Link, Attachment Number D-3, Attachment Type Pin, Material Steel, Chain Overall Width 0.878 in, Chain Number 50, Roller Diameter 25/64 in, Finish Nickel Plated, Pitch 5/8 in, Link Type Attachment, Centerline to Attachment End 0.472 in, Centerline to Hole Center 0.406 in, Extended Pin Diameter 0.2 in, Lubrication SAE 10 to SAE 50, Maximum Operating Temperature 302 Degrees F, Minimum Operating Temperature 14 Degrees F, Number of Tab Holes 1, Pin Contruction Riveted Pin
