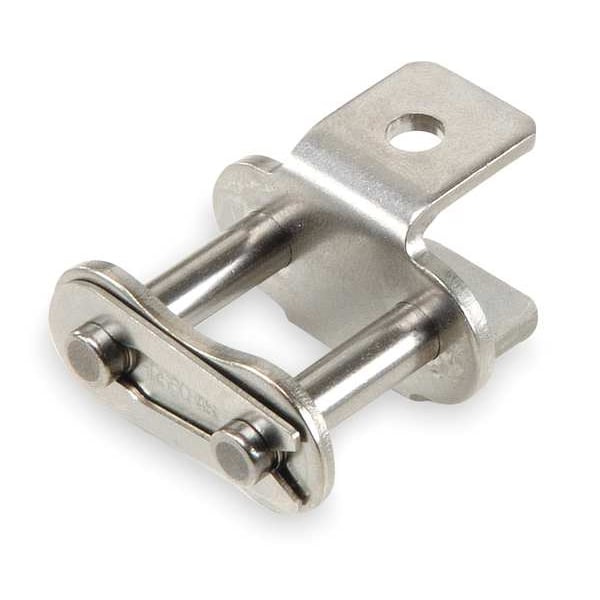

Connecting Link, AA-1 Attachment, PK5

Mfr # 40ASAA1CL
Zoro # G2294887

$124.99

/pk 5, $25.00/ea

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Roller Chain Link Type AA-1
Industry Chain Size 40
Chain Link Material 600 Stainless Steel
Industry Chain Pitch 1/2 in
Number of Strands Single

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Tsubaki
MFR # 40ASAA1CL
Zoro # G2294887
Country of Origin Japan
Category Chain Links

Dimensions

Industry Chain Size	40
Chain Link Overall Width	0.717 in
Chain Roller Dia.	0.312 in
Overall Width (In.)	0.717
Outside Pin Dia.	0.156 in
Inside Pin Dia.	0.156 in
Roller Link Plate Height (In.)	0.472
Length (In.)	0.500
Outside Pin Dia. (In.)	0.156
Pin Length	0.717 in
Roller Link Plate Height	0.472 in
Width Between Roller Link Plates	0.312 in
ANSI Chain Size	40AS
Pin Length (In.)	0.717
Width Between Roller Link Plates (In.)	0.312
Roller Dia. (In.)	0.312
Plate Height	0.472 in
Tab Hole Diameter	0.141 in
Roller Diameter	5/16 in
Chain Overall Width	0.717 in
Inside Width	5/16 in
Tab Width	0.375 in

Details

Roller Chain Link Item	Attachment Link
Roller Chain Link Type	AA-1
Chain Link Material	600 Stainless Steel
Industry Chain Pitch	1/2 in
Number of Strands	Single
Rivet End to Center Line	0.325 in
Item	Attachment Link
Pin Link Plate Thickness (In.)	0.060
Type	AA-1 Attachment
Lubrication	SAE 10 to SAE 50
Max. Allowable Load (Lb.)	150
Agency Compliance	American National Standards Institute (ANSI)
Connecting End to Center Line (In.)	0.392
Material	Stainless Steel
Connecting End to Center Line	0.392 in
Rivet End to Center Line (In.)	0.325
Pitch	1/2 in
Pin Link Plate Thickness	0.06 in
Pin Type	Riveted
Max. Allowable Load	150 lb
Temp. Range	-40 Degrees to 750 Degrees F
Finish	Plain
Heavy Series	No
Plate Thickness	0.06 in
Heavy Series (from Heavy)	Regular
Attachment Number	A-1
Maximum Operating Temperature	750 Degrees F
Pitch Type	Single Pitch
Standards	ANSI
Working Load Limit	150 lb
Tab Orientation	Horizontal Outward
Chain Construction	Riveted Pin
Centerline to Hole Center	0.5 in
Features	Greater Fatigue Strength, Higher Horsepower Ratings, Longer Wear Life
Series	RS
For Chain Style	Stainless Steel Roller Chains
Attachment Type	Tab
Minimum Operating Temperature	-40 Degrees F
Application	Conveyors
Material Grade	600
Pin Contruction	Riveted Pin
Chain Number	40
Centerline to Attachment End	0.701 in
For Chain Number	40
Link Type	Attachment Link
Number of Tab Holes	1
Link Style	Attachment Link
Single or Double Strand	Single

Description

Attachment Link, Attachment Number A-1, Attachment Type Tab, Material Stainless Steel, Chain Overall Width 0.717 in, Chain Number 40, Roller Diameter 5/16 in, Finish Plain, Pitch 1/2 in, Link Type Attachment, Application Conveyors, Centerline to Attachment End 0.701 in, Centerline to Hole Center 0.5 in, Chain Construction Riveted Pin, Extended Pin Diameter Not Applicable, Features Greater Fatigue Strength, Higher Horsepower Ratings, Longer Wear Life, Heavy Series No, Inside Width 5/16 in
