Shop All Chain Links
Tsubaki

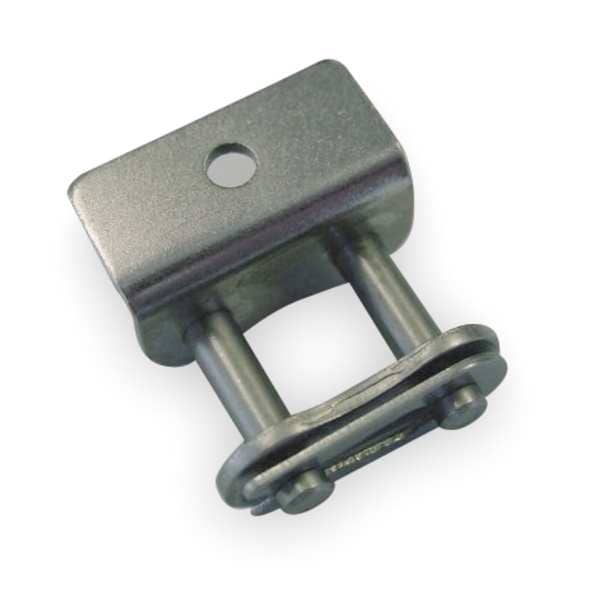

Chain Link, WA-1 Attachment, ANSI 40NP, PK5
Mfr # 40NPWA1CL
Zoro # G1564701
product price: $33.99
/pk 5, $6.80/ea
$33.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Roller Chain Link Type WA-1
- Industry Chain Size 40
- Chain Link Material Nickel Plated Steel
- Industry Chain Pitch 1/2 in
- Number of Strands Single
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Tsubaki
- MFR # 40NPWA1CL
- Zoro # G1564701
- Country of Origin Japan
- Category Chain Links
Dimensions
Industry Chain Size | 40 |
Chain Link Overall Width | 0.717 in |
Chain Roller Dia. | 0.312 in |
Roller Link Plate Height | 0.472 in |
Outside Pin Dia. | 0.156 in |
Overall Width (In.) | 0.717 |
Roller Dia. (In.) | 0.312 |
Pin Length | 0.717 in |
Inside Pin Dia. | 0.156 in |
Width Between Roller Link Plates | 0.312 in |
Length (In.) | 0.500 |
Outside Pin Dia. (In.) | 0.156 |
Pin Length (In.) | 0.717 |
ANSI Chain Size | 40NP |
Width Between Roller Link Plates (In.) | 0.312 |
Roller Link Plate Height (In.) | 0.472 |
Chain Overall Width | 0.717 in |
Roller Diameter | 19/64 in |
Plate Height | 0.472 in |
Extended Pin Diameter | 0.156 in |
Description
Attachment Link, Attachment Number WA-1, Attachment Type Wide Contour Tab, Material Steel, Chain Overall Width 0.717 in, Chain Number 40, Roller Diameter 19/64 in, Finish Nickel Plated, Pitch 1/2 in, Link Type Attachment, Centerline to Attachment End 0.392 in, Centerline to Hole Center 0.325 in, Extended Pin Diameter 0.156 in, Lubrication SAE 10 to SAE 50, Maximum Operating Temperature 140 Degrees F, Minimum Operating Temperature 14 Degrees F, Number of Tab Holes 1, Pin Contruction Riveted Pin
