Item
|
Power Inverter and Battery Charger
|
Peak Output Power
|
7,200 W
|
Continuous Output Power
|
3,600 W
|
Inverter Output Form
|
Modified Sine Wave
|
Inverter Input Voltage
|
36V DC; 120V AC
|
Inverter Output Voltage
|
120V AC
|
Outlet Type
|
Hardwired
|
DC Connection
|
Bolt Down Terminals
|
Number of Outlets
|
1
|
Case Material
|
Polycarbonate
|
Max. Input Current
|
Full continuous load - 114 A at 36V DC; 54 A at 120V AC with full inverter and charger load
|
Nominal Output Power
|
3,600 W
|
Charger Output Amps
|
30
|
Charger Output Voltage
|
120V
|
Charger Input Voltage
|
120V AC
|
Includes
|
Remote Control Module
|
Automatic/Manual
|
Automatic
|
Application
|
Powering Tools; Saws; Motors; Pumps; Portable Lighting; Appliances and Computer Equipment in Heavy-Load Conditions
|
Features
|
Automatic Transfer Switching, Automatic Voltage Regulation, Meets Normal and Peak Power Demands, Reliable Power for Mobile, Emergency and Remote Sites, Remote Control Capability, Rugged Polycarbonate Housing
|
Inveter Output Voltage
|
120V
|
Output Frequency
|
60 Hz
|
Output Voltage
|
115VAC
|
Input Voltage
|
36VDC
|
Charger Input Current
|
20 A
|
Charger Output Current
|
30 A
|
Product Name
|

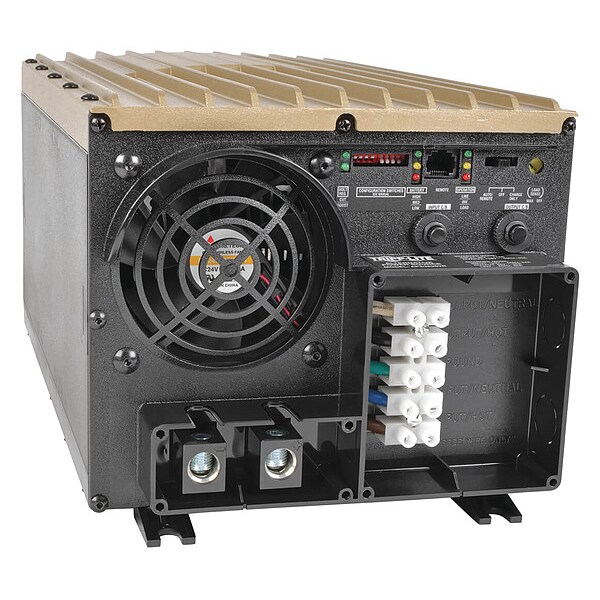

PowerVerter APS3636VR Power Inverter
|
Product Series
|
APS
|
Product Line
|
PowerVerter
|
Package Contents
|
PowerVerter APS3636VR Power Inverter, Instruction manual with warranty information, Wired Remote Switch with full LED status indicators
|
Maximum Frequency
|
60 Hz
|
Output Voltage Regulation
|
LINE POWER (AC): Maintains 120V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains PWM sine wave output voltage of 120 V AC (+/-5%).
|
High Voltage Transfer to Battery Power
|
In AC "auto" mode, inverter/charger switches to battery mode as line voltage increases to 135V (user adjustable to 145 - see manual)
|
Brownout Correction
|
Brownouts starting at 103 are automatically boosted by 10%
|
Package Includes
|
APS3636VR 3600W PowerVerter APS 36V DC 120V AC Inverter/Charger;APSRM4 remote control module;Owner's manual
|
Voltage Regulation Description
|
Includes automatic voltage regulation to correct brownouts and over-voltages back to usable levels
|
Material of Construction
|
Polycarbonate
|
Overvoltage Correction
|
Over-voltages starting at 127 are automatically reduced by 10%
|
Overload Protection
|
Includes 25A input breaker dedicated to the charging system and 30A output breaker for AC output loads.
|
Voltage Compatibility (VDC)
|
36
|
Battery Pack Accessory (Optional)
|
98-121 sealed lead acid battery (optional)
|
Load Sensing
|
Optional load sense function enables automatic inverter shutoff and startup as connected equipment is powered off and on. Front panel load sense potentiometer can be set to shutoff or turn on inverter power in response to loads of any level, up to 150 watts.
|
Output Receptacles
|
Hardwire
|
Battery Charge
|
30A
|
Expandable Runtime
|
Yes
|
Front Panel LEDs
|
Set of 6 LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences.
|
Nominal Input Voltage(s) Supported
|
120V AC
|
Voltage Compatibility (VAC)
|
120
|
Frequency Compatibility
|
60 Hz
|
Recommended Electrical Service
|
DC INPUT: Requires 36VDC input source capable of delivering 114A for the required duration (when used at full continuous capacity - DC requirements increase during Over-Power and Double-Boost operation).
|
Transfer Time (Line Power to Battery Mode)
|
16.6 milliseconds (typical - compatible with many computers, servers and networking equipment - verify transfer time compatibility of loads for UPS applications)
|
DC System Voltage (VDC)
|
36
|
Output Frequency Regulation
|
60 Hz (+/- 0.3 Hz)
|
Maximum Input Amps / Watts
|
DC INPUT: Full continuous load - 114A at 36VDC. AC INPUT: 54 amps at 120VAC with full inverter and charger load (20A max charger-only / combined input load to support charger and AC output is automatically controllable to 66%-33%-0% based on AC output load
|
Nominal Output Voltage(s) Supported
|
120V
|
Form Factors Supported
|
Mounting slots enable permanent placement of inverter on any horizontal surface (see manual for additional mounting information)
|
Switches
|
3 position on/off/remote switch enables simple on/off power control plus "auto/remote" setting that enables distant on/off control of the inverter system when used in conjunction with optional External switch for wired remote control of APS unit ( APSRM4 ) accessory when used in inverter mode. In AC uninterruptible power mode, "auto/remote" setting enables automatic transfer from line power to battery power - to maintain continuous AC power to connected loads.
|
Low Voltage Transfer to Battery Power
|
In AC "auto" mode, inverter/charger switches to battery mode as line voltage drops to 75V (user adjustable to 85, 95V - see manual)
|
Relative Humidity
|
0%-95% Non-Condensing
|
Cooling Method
|
Fan
|
