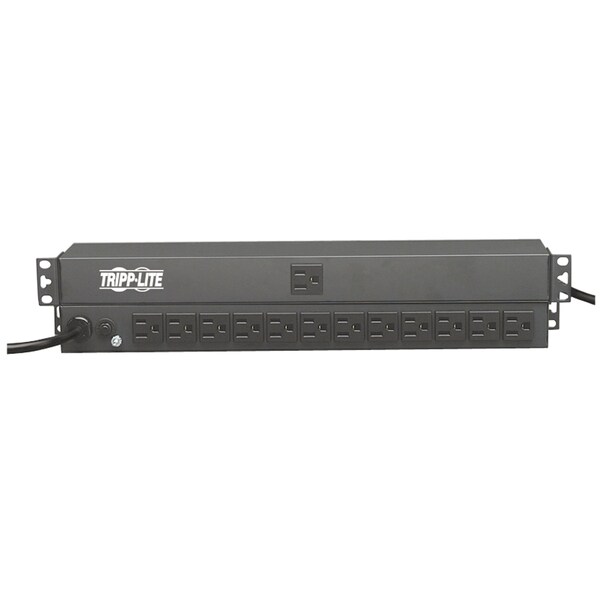

12-OUTLET PWR DIST UNIT 15AMP, 120V 15'CORD,

Mfr # PDU1215
Zoro # G0192447

$152.99

Sold in multiples of 2 for $305.98

Free Shipping & Returns

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Number of Outlets 13
Voltage 100/120/127V
Cord Length 15 ft
Max. Amps 15A
Mounting Style Horizontal Rackmount/1U, Vertical Rackmount/0U, Wall-Mount and Undercounter Installation Supported

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Tripp Lite
MFR # PDU1215
Zoro # G0192447
Country of Origin Unknown
Category Power Strips

Dimensions

Cord Length	15 ft
Height	2"
Depth	4.5"
Width	20"
Rack Height	1U
Input Cord Length (ft.)	15
Minimum Required Rack Depth (inches)	7.5
Unit Dimensions (hwd / in.)	2.000 x 20.000 x 4.500

Details

Number of Outlets	13
Voltage	100/120/127V
Max. Amps	15A
Mounting Style	Horizontal Rackmount/1U, Vertical Rackmount/0U, Wall-Mount and Undercounter Installation Supported
Power Indicator	No
Housing Material	Metal
NEMA Receptacle Configuration	(13) 5-15R
NEMA Plug Configuration	5-15P
Outlet Center Distance	30.2 mm
Hz	50/60 Hz
Circuit Breaker	Yes
Watts	1.9kW (127V), 1.8kW (120V), 1.5kW (100V)
Phase	Single Phase
Features	15A Circuit Breaker
Standards	UL1363 5TH Edition, CAN/CSA-22.2 No. 308-14
Type	Basic
Product Type	PDU
Output Voltage	120 V AC
Compatibility	TYPICAL APPLICATIONS: Multi-outlet power distribution unit is the ideal means of powering multiple loads in 19 inch rackmount, wallmount and under-counter applications, such as internetworking, PC systems, telecommunications, audio/video, security, sound reinforcement and more. Ideal for distribution of UPS, generator or commercially derived AC power to protected equipment.
Mount Type	Rack-mountable
Input Voltage	120 V AC
Package Contents	PDU1215 PDU Basic 120V 15A 13 Outlet, PDU1215 Rackmount Power Strip, Warranty information, Instruction manual
Plug/Connector Detail	1 x NEMA 5-15P
PDU Type	Basic
Mounting Orientation	Horizontal
Receptacle Detail	13 x NEMA 5-15R
Input Current	15 A
Network (RJ-45)	Yes
Power Rating (Watt)	1800 W
Certifications & Standards	cUL, UR
Additional Information	Corded AC power distribution unit with 15 amp capacity and 13 AC receptacles, Versatile all-metal cabinet with detachable mounting flanges allows wallmount, under-counter and 19 inch rackmount mounting in both 1U or zero-U formats, Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes, including zero-U rackmount capability in the cable management area or other available space within a rack enclosure, Unfiltered electrical pass-through reliably distributes alternate waveform AC power from UPS or generator to supported equipment, 13 NEMA5-15R output receptacles accept common NEMA5-15 equipment plugs, 15 foot AC cord NEMA5-15P plug connection, Switch-free design prevents the potential for accidental shutoff of connected loads, 15 amp electrical capacity with circuit breaker, 120V AC, 50/60Hz electrical compatibility
Product Name	PDU1215 PDU Basic 120V 15A 13 Outlet
Output Nominal Voltage	120V
Maximum Input Amps	15
Storage Temperature Range	-22° to 122°F (-30° to 50°C)
Operating Elevation (ft.)	0-10,000
Product Certifications	RETIE (Colombia); CAN/CSA-22.2 No. 308-14 (Canada); NOM (Mexico); UL 1363
Output Capacity Details	1.8kW (120V) / 15A total capacity; 12A max per 5-15R outlet
Input Phase	Single-Phase
Switches	No power switch
PDU Input Voltage	120
Form Factors Supported	1U rackmount, 0U vertical rackmount, wall-mount and undercounter installation supported
Operating Temperature Range	32° to 104°F (0° to 40°C)
Grounding	Grounding lug
Relative Humidity	5% to 95% non-condensing
Outlets Measurement (Center to Center)	30.2mm
Recommended Electrical Service	Single-phase 15A 120V service
Package Includes	PDU1215 1.8kW Single-Phase 120V Basic PDU;Mounting hardware;Owner's manual
Frequency Compatibility	50 / 60 Hz
PDU Plug Type	NEMA 5-15P
Overload Protection	15A Breaker
PDU Form Factor	Horizontal (1U)
Output Capacity (kW)	1.8
Material of Construction	Metal
Output Receptacles	(13) 5-15R
