Shop All Linear Guides
Thomson

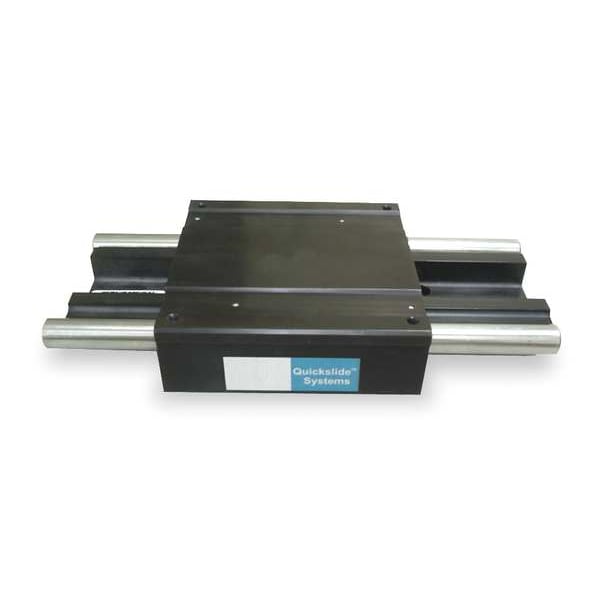

Linear Guide, Width 2.000 In, Length 12 In
Mfr # 2DA0800BL12
Zoro # G1680777
Free Shipping & Returns
$1,008.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Type Dual Rail
- Base Width (In.) 2 in
- Overall Height (In.) 1.625 in
- Overall Height 1.625 in
- Rail Height (In.) 0.875 in
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Thomson
- MFR # 2DA0800BL12
- Zoro # G1680777
- Country of Origin Mexico
- Category Linear Guides
Dimensions
Base Width (In.) | 2 in |
Overall Height (In.) | 1.625 in |
Overall Height | 1.625 in |
Rail Height (In.) | 0.875 in |
Rail Length (In.) | 12 in |
Carriage Hole Size (In.) | #10-32 |
Dimension R | 0.5 in |
Dimension H | 1.625 in |
Dimension B1 | 4.6 in |
Dimension M | 4 in |
Dimension T | 4.5 in |
Dimension N1 | 0.25 in |
Dimension Y | 2 in |
Dimension G | 0.28 in |
Dimension B2 | 3 in |
Hole Size | 0.28 in |
Carriage Height (In.) | 1.43 in |
Dimension C | 0.64 in |
Dimension C1 | 1.25 in |
Dimension Z | 0.75 in |
Dimension X | 4 in |
Dimension H2 | 1.43 in |
Dimension L | 12 in |
Dimension S | 0.5 in |
Dimension H1 | 0.875 in |
Carriage Width (In.) | 4.6 in |
Dimension N | 4 in |
Dimension F | #10-32 |
Dimension M1 | 0.3 in |
Dimension B | 2 in |
Carriage Length (In.) | 4.5 in |
Rail Length | 12 in |
Rail Height | 0.875 in |
Rail Mounting Hole Size | 0.28 in |
Carriage Width | 4.6 in |
Carriage Length | 4.5 in |
Rail Base Width | 2 in |
Rail Width | 2 in |
Carriage Mounting Hole Size | #10-32 |
Carriage Height | 1.43 in |
Description
Linear Guide, Rail Width 2 in, Number of Carriages 1, Overall Height 1.625 in, Rail Length 12 in, Rail Material 60 Case Shafting, Carriage Material Aluminum Alloy, Carriage Length 4.5 in, Carriage Width 4.6 in, Dynamic Load Capacity 2.14 kN, Rail Height 0.875 in, Rail Mounting Hole Size 0.28 in, Rail Base Width 2 in, Carriage Height 1.43 in, Carriage Mounting Hole Size #10-32, Mounting Hole to End 2 in, Mounting Hole Center to Center 4 in
