Air Mover, 8in.

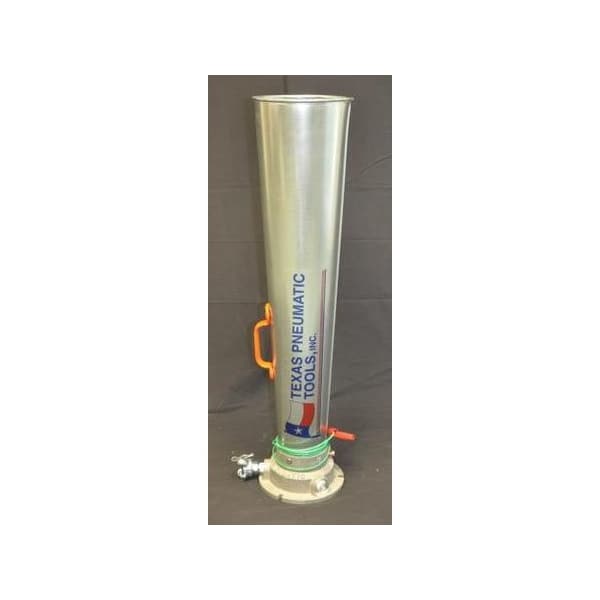

8in. Air Mover with Metal Horn AIR FILTRATION FOR BETTER BREATHING When workers are breathing the air that has passed through the air movers, Texas Pneumatic has made available products to improve the environmental conditions. Dust collection bags are able to catch the larger suspended particles and contain them from floating beyond the top of the air horn. An Arrow Pneumaticft s filter can be used to filter can be used to filter the air coming from the compressed air source. The compressed air may be contaminated with an oil content exceeing 5ppm. By using one of the high efficiency systems from Arrow, it ensures an air quality index of .015ppm. As a cautionary note, strict precautions may be required involving the use of any air mover in gas freeing, prevention of tank collapse, tank entry and tank cleaning where any volatile or poisonous fumes are present. Compressed air or staurated steam is the power source for this air mover. It operates on the venturi principle whereby you take small volumes of high velocity air from the compressed air source through the casting and out the nozzle jets, creating a venturi action or pulling action that induces large volumes of low velocity air through the venturi and out the air diffuser. A 1-1/2in. hose is recommended from your air supply source to the side inlet connection. The compressor size required can be determined by checking the chart on air consumed at various inlet pressures. Operate this air mover on air or steam lines limited to 140psi. SPECIFICATIONS Overall Length in 46.06 Diameter of Base in 14.37 Diameter of Top of Horn in 14.25 NPT Size 1 Bolt Circle Diameter in 13.62 Base Slot Diameter in 0.5 Net Weight lb 36 PERFORMANCE Inlet Pressure 60 PSIG 80 PSIG 100 PSIG Total Air Flow 4215 4810 5435 Air Consumed scfm 108 142 178 Free Air Induction Ratio 39.03 33.87 30.53 ACCESSORIES Air Mover Stand AMIS30 Metal Cone for TX8AM Air Mover Polymer Cone for TX8AM Air Mover AM17P Grounding Clamp with 6ft Wire AM29 Air Ducting - 16in. x 30ft with attached bag for carrying and storage TXSAC-N-GO-18
