  15. Inside Micrometer, Range 1.400 to 1.600", 0.0001"
Shop All Micrometers
Tesa Brown & Sharpe

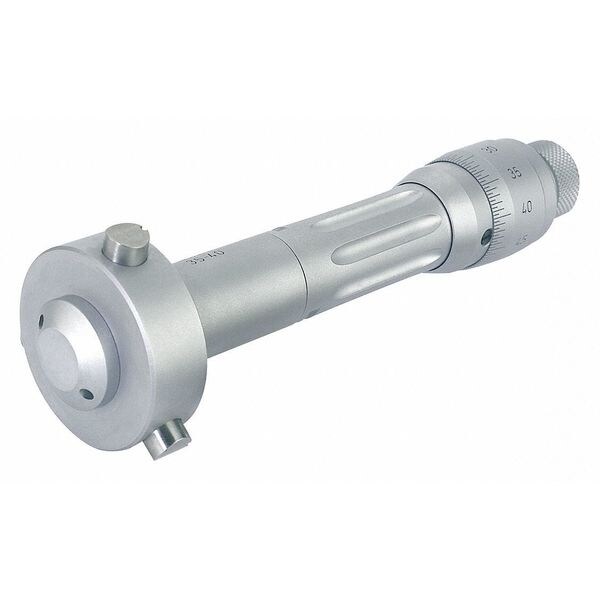

Inside Micrometer, Range 1.400 to 1.600", 0.0001"

product price: $736.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Resolution 0.0001 in
  • Features Analog Reading, Instruments In The Range 0.275 in to 4.00 in Have Hardened Steel Measuring Points (770 HV), Instruments In The Range 4.00 in to 12.00 in Have Tungsten Carbide Inserts In The Measuring Points (1300 HV), INTRIMIK's Measuring Arms Move At Right Angles To The Spindle, No Influence Of Temperature Variation On The Measurement, Self-Centering And Self-Aligning Guaranteed By 3-line Contact
  • Includes Declaration Of Conformity, Measuring Report
  • Spindle Helicoidal
  • Anvil Curved
See all product information

Product Information

Dimensions

Width (In.) 2.5
Length (In.) 6
Probe Depth (In.) 3.00

Details

Item Mechanical 3-Point Inside Micrometer
Resolution 0.0001 in
Range 1.4 in to 1.6 in
Features Analog Reading, Instruments In The Range 0.275 in to 4.00 in Have Hardened Steel Measuring Points (770 HV), Instruments In The Range 4.00 in to 12.00 in Have Tungsten Carbide Inserts In The Measuring Points (1300 HV), INTRIMIK's Measuring Arms Move At Right Angles To The Spindle, No Influence Of Temperature Variation On The Measurement, Self-Centering And Self-Aligning Guaranteed By 3-line Contact
Includes Declaration Of Conformity, Measuring Report
Spindle Helicoidal
Anvil Curved
Thimble Ratchet
Rod Type Adjustable
Rotating Spindle (Yes/No) Yes
SPC Output No
Movement of Screw 1 in
Anvil Material Hardened Steel
Standards DIN 863 T4 (C1) / NF E 11-099
Number of Measuring Rods 0
Number of Gauges 1
Spindle Material Hardened Steel
Head Type Through Hole
Graduations .0002 in
Material Steel
Head Angle (Deg.) 120x120x120
Measuring Range (In./mm) 1.4-1.6
Finish Steel
Thickness (In.) 2
Measuring Range (In.) 1.4-1.6
Inside Micrometer Type 3-Point Inside Micrometer
Operation Type Mechanical
Number of Micrometers 1
Minimum Measurement - Inch 1.4 in
Case Included Yes
Contact Point Shape Curved
Thimble Type Ratchet
Contact Point Material Steel
Maximum Measurement - Inch 1.6 in
Included Certification Declaration of Conformity

Description

Mechanical 3-Point Inside Micrometer, Range 1.4 in to 1.6 in, Resolution 0.0001 in, SPC Output No, Movement of Screw 1 in, Inside Micrometer Type 3-Point Inside Micrometer, Number of Measuring Rods 0, Number of Micrometers 1, Operation Type Mechanical, Thimble Type Ratchet, Case Included Yes, Contact Point Material Steel, Contact Point Shape Curved
