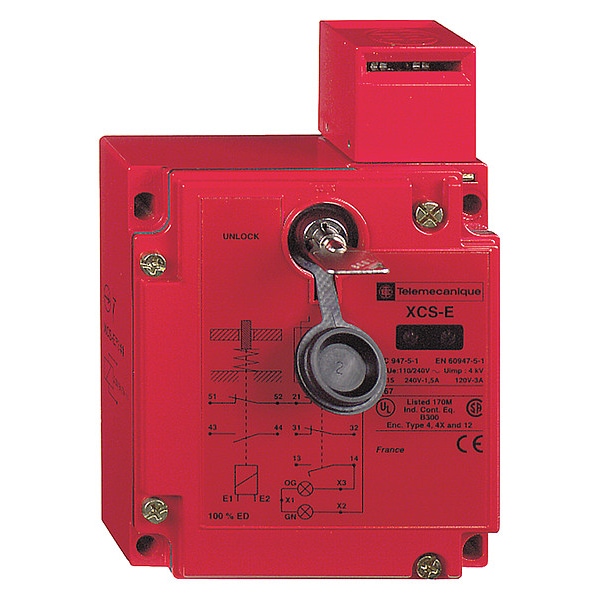

Safety Interlock 300Vac 5A Txcs

Mfr # XCSE7511
Zoro # G0560430

$618.16

Free Shipping & Returns

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Series XCSE
Height 146-146 mm
Width 98 mm
Depth 44 mm
Electrical Connection terminal 1 x 0.5...2 x 1.5 mmÂ² with or without cable end

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Telemecanique Sensors
MFR # XCSE7511
Zoro # G0560430
UPC #
785901115861
Country of Origin Indonesia
Category Safety Interlock Switches

Dimensions

Height	146-146 mm
Width	98 mm
Depth	44 mm
Cable Outer Diameter	9-12 mm

Details

Item	Safety Interlock Switch
Series	XCSE
Electrical Connection	terminal 1 x 0.5...2 x 1.5 mmÂ² with or without cable end
Head Material	zamak
Body Material	zamak
Standards	CSA C22.2 No 14 \|\| UL 508 \|\| EN/ISO 12100 \|\| EN 1088/ISO 14119 \|\| EN/IEC 60204-1 \|\| EN/IEC 60947-5-1
Material	metal
Mechanical Durability	1000000 cycles
Head Type	key operated turret head
Shock Resistance	10 gn 11 ms IEC 60068-2-27
Vibration Resistance	5 gn 10-500 Hz)IEC 60068-2-6
Component Name	XCSE
Number Of Poles	3
Signalling Circuit Voltage	24/48 V 20...52 V)
Ip Degree Of Protection	IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1
Ambient Air Temperature For Storage	-40-70Â°C
[Uimp] Rated Impulse Withstand Voltage	6 kV EN/IEC 60947-5-1
Maximum Actuation Speed	0.5 m/s
Electrical Shock Protection Class	class I EN/IEC 61140
Solenoid Contacts Type And Composition	1 NC + 1 NO slow-break, simultaneous)
Positive Opening	with NC contact
[Us] Rated Supply Voltage	24 V - 20...10 %
Product Certifications	UL \|\| CSA
Ambient Air Temperature For Operation	-25-40Â°C
Contact Operation	slow-break, break before make
Power Consumption In Va	10 VA inrush \|\| 10 VA sealed
Design	rectangular
Load Factor	1
Supply Voltage Type	AC/DC
Signalling Circuit Type	AC/DC
[Ui] Rated Insulation Voltage	50 VEN/IEC 60947-1 signalling circuit
Actuator Forcible Withdrawal Rtc	2000 N
[Ie] Rated Operational Current	0.55 A 125 V, DC-13, Q300 EN/IEC 60947-5-1 \|\| 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 \|\| 3 A 120 V, AC-15, B300 EN/IEC 60947-5-1 \|\| 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1
Cable Entry	2 entries tapped Pg 13.5
Electromagnet Interlocking	locking on energisation and unlocking on de-energisation of solenoid
Protection Type	overvoltage protection signalling circuit
[Ithe] Conventional Enclosed Thermal Current	6A
Short-Circuit Protection	10 A cartridge fuse gG (gl)
Minimum Actuator Force For Extraction	20 N
Supply Frequency	50/60 Hz
Product Or Component Type	safety switch
Local Signalling	for guard open/guard closed and locked 2 LEDs (green or orange)
Protective Treatment	TC
Safety Level	can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 \|\| can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 \|\| can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508
Minimum Actuation Speed	0.01 m/s
Maximum Operating Rate	10 cyc/mn for maximum durability
Contacts Type And Composition	2 NC + 1 NO
Signalling Circuit Consumption	7 mA
Actuator Material	Metal
