Shop All Pressure Switches
Telemecanique Sensors

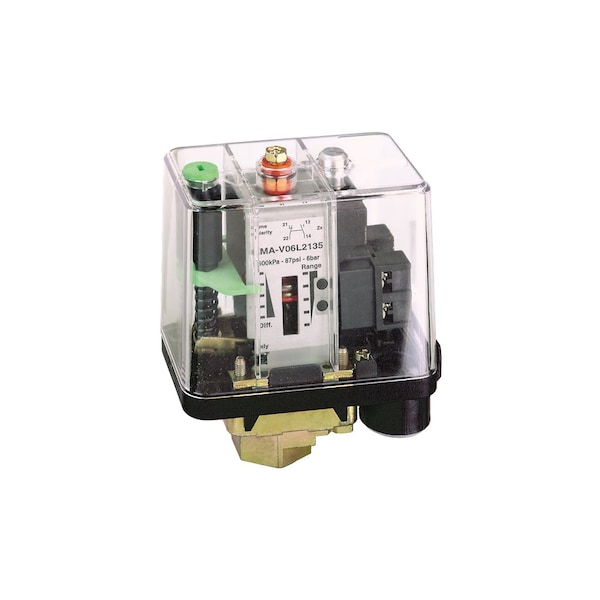

Pressure Switch, 1 C/O, Regulation between 2 thresholds Action
Mfr # XMAV12L2135
Zoro # G4062271
product price: $72.99
/ea
$72.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Pressure Switch Electrical Contact Form 1 C/O
- Pressure Switch Action Regulation between 2 thresholds
- Circuit Type Control Circuit
- Housing Material PC impregnated with Lexan 123
- Actuation Type Diaphragm
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Telemecanique Sensors
- MFR # XMAV12L2135
- Zoro # G4062271
- Country of Origin China
- Category Pressure Switches
Details
| Item | Pressure Switch |
| Pressure Switch Electrical Contact Form | 1 C/O |
| Pressure Switch Action | Regulation between 2 thresholds |
| Circuit Type | Control Circuit |
| Housing Material | PC impregnated with Lexan 123 |
| Actuation Type | Diaphragm |
| Special Features | transparent; Mercury Free; Green Premium product |
| Standards | CE; EN/IEC 60947-5-1; CCC; UL; CSA |
| Temp. Range | -25 to 55 °C |
| Electrical Connection | Screw-Clamp Terminals |
| IP Rating | IP54 (EN/IEC 60529) |
| Burst Pressure | 30 bar |
| Max. Pressure | 15 bar |
| Differential | Fixed Differential Scale |
Description
Pressure switch XMA 12 bar - adjustable
