  13. Lmt Switch 3 Contact Block 240Vac 3A Xe3
Shop All Limit Switch Accessories
Telemecanique Sensors

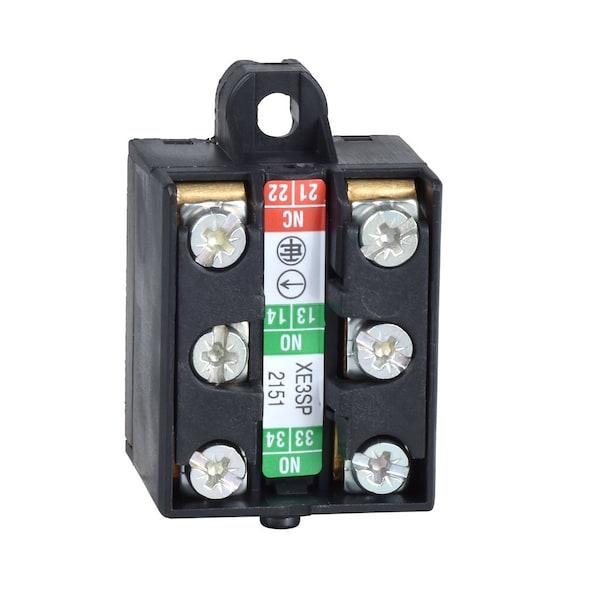

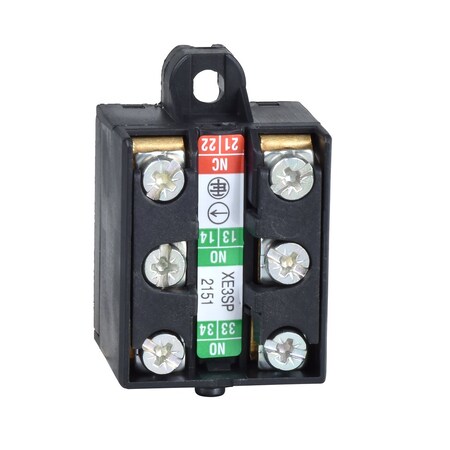

Lmt Switch 3 Contact Block 240Vac 3A Xe3

product price: $68.99
/ea
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Contacts Type And Composition 2 NO + 1 NC
  • [Uimp] Rated Impulse Withstand Voltage 4 kV IEC 60664 || 4 kV IEC 60947-1
  • [Ui] Rated Insulation Voltage 300 VUL 508 || 300 VCSA C22.2 No 14 || 400 V 3)IEC 60947-1
  • Maximum Resistance Across Terminals 25 mOhm IEC 60255-7 category 3
  • Series Name standard format
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Details

Item Lmt Switch 3 Contact Block 240Vac 3A Xe3
Contacts Type And Composition 2 NO + 1 NC
[Uimp] Rated Impulse Withstand Voltage 4 kV IEC 60664 || 4 kV IEC 60947-1
[Ui] Rated Insulation Voltage 300 VUL 508 || 300 VCSA C22.2 No 14 || 400 V 3)IEC 60947-1
Maximum Resistance Across Terminals 25 mOhm IEC 60255-7 category 3
Series Name standard format
Contacts Material silver plated contacts
Contact Code Designation B300, AC-15 (Ue = 240 V), Ie = 1.5 A 6 A EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A
Product Compatibility XCKD || XCKP || XCKM || XCKJ || XCKL || XCKS
Associated Body ZCKMD31 || ZCKLD31 || ZCKJD31 || ZCD31 || ZCP31 || ZXKSD31
Short-Circuit Protection 6 A cartridge fuse gG
Contacts Insulation Form Zb
Contact Operation snap action
Product Or Component Type limit switch contact block
Electrical Durability 5000000 cycles, DC-13 120 V, 1 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Device Short Name XE3S
Minimum Actuation Speed 0.01 mm/s
Positive Opening with
Number Of Poles 3
Electrical Connection screw-clamp terminals 1 x 0.34 to 2 x 0.75 mm²

Description

Lmt Switch 3 Contact Block 240Vac 3A Xe3
