  13. Lmt Switch 2 Contact Block 240Vac 3A Xe2
Shop All Limit Switch Accessories
Telemecanique Sensors

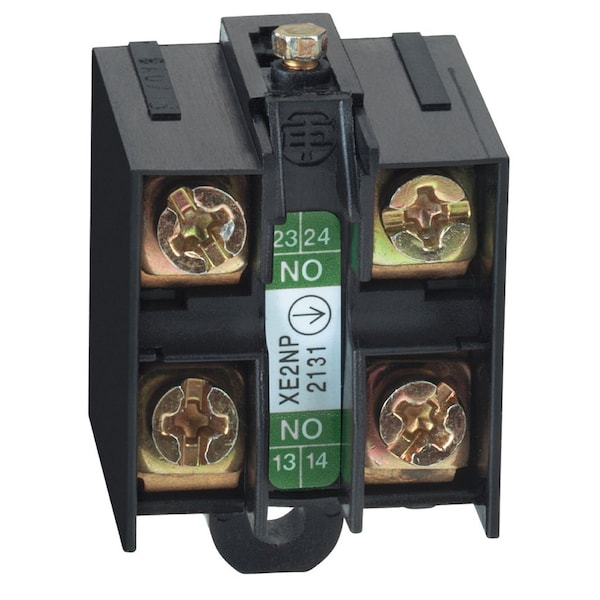

Lmt Switch 2 Contact Block 240Vac 3A Xe2

product price: $46.79
/ea
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Electrical Connection screw-clamp terminals 1 x 0.5 to 2 x 2.5 mm²
  • Series Name standard format
  • Contact Operation slow-break, simultaneous
  • Device Short Name XE2N
  • Contact Code Designation A300, AC-15 (Ue = 240 V), Ie = 3 A 10 A EN/IEC 60947-5-1 appendix A || Q300, DC-13 (Ue = 250 V), Ie = 0.27 A EN/IEC 60947-5-1 appendix A
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Details

Item Lmt Switch 2 Contact Block 240Vac 3A Xe2
Electrical Connection screw-clamp terminals 1 x 0.5 to 2 x 2.5 mm²
Series Name standard format
Contact Operation slow-break, simultaneous
Device Short Name XE2N
Contact Code Designation A300, AC-15 (Ue = 240 V), Ie = 3 A 10 A EN/IEC 60947-5-1 appendix A || Q300, DC-13 (Ue = 250 V), Ie = 0.27 A EN/IEC 60947-5-1 appendix A
Positive Opening without
Electrical Durability 5000000 cycles, DC-13 120 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 13 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 9 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
[Ui] Rated Insulation Voltage 300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14
Minimum Actuation Speed 6 m/min
Contacts Type And Composition 2 NO
Associated Body ZCKS8 || ZCKJ8D || ZCKM8 || ZCP28 || ZCKL8 || ZCKJ8 || ZCD28
Short-Circuit Protection 10 A cartridge fuse gG
Maximum Resistance Across Terminals 25 mOhm IEC 60255-7 category 3
Product Or Component Type limit switch contact block
Contacts Material silver plated contacts
[Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60664 || 6 kV IEC 60947-1
Product Compatibility XCKD || XCKS || XCKP || XCKM || XCKL || XCKJ
Number Of Poles 2
Contacts Insulation Form Zb

Description

Lmt Switch 2 Contact Block 240Vac 3A Xe2
