Telemecanique Sensors

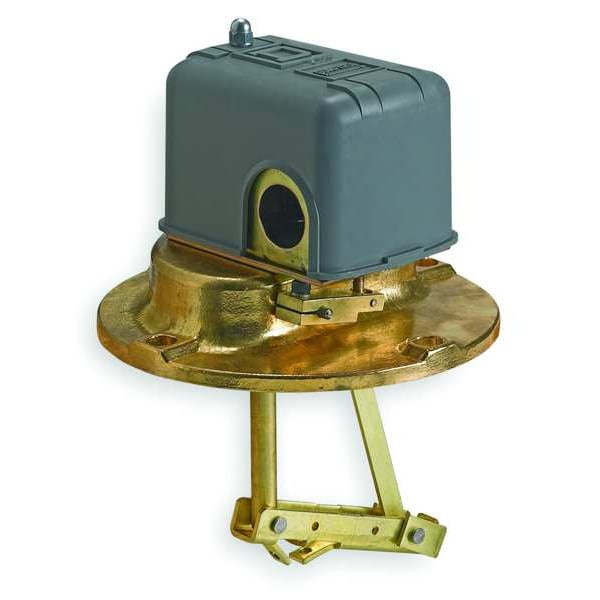

DPST Liquid Level Switch Close on Rise 575VAC
Mfr # 9037EG8
Zoro # G3313475
Free Shipping & Returns
$220.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Promotion Restriction Not eligible for promotion
- Voltage 575VAC
- HP @ 1 Phase - 240V 3 hp
- Body Material Steel
- Tank Connection Size 5-1/8 in
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Telemecanique Sensors
- MFR # 9037EG8
- Zoro # G3313475
- UPC # 785901485438
- Country of Origin Mexico
- Category Level Switches
Dimensions
Tank Connection Size | 5-1/8 in |
Conduit Size | 1/2 in |
Height | 5.56 in |
Width | 3.43 in |
Overall Length | 3.86 in |
Overall Height | 5.56 in |
Stem Thread Size | 5 1/8 in |
Manufacturer Warranty Length | 18 mo |
Overall Width | 3.43 in |
Description
Closed Liquid Level Switch, Switch Function Close On Rise, Vertical Open Tank Mounting, Float Travel 2 1/16 in, NEMA Rating 1, Tank Connection Size 5-1/8 in, Operating Temp. Range -22 Degrees to 220 Degrees F, Overall Length 3.86 in, Height 5.56 in, Width 3.43 in, Contact Form DPST-2NC, Max. Current 600 A, Max. Voltage 575 V, HP @ 1 Phase - 120V 2 hp, HP @ 1 Phase - 240V 3 hp, HP @ 3 Phase - 240V 5 hp, Body Material Steel, Float Position Below, Float Rod Angle Horizontal, Conduit Size 1/2 in
