Compact smart relay Zelio Logic - "disco, 24V Coil Volts, NO Relay Output

Mfr # SR2PACK2BD
Zoro # G7688728

$413.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Coil Volts 24V
Contact Form - Relay NO Relay Output
Power Consumption - Relay 6 W
Features Local Display; Reverse Polarity Protection
Standards IEC 61000-4-6 level 3, IEC 61000-4-3, IEC 60068-2-27 Ea, IEC 61000-4-11, IEC 61000-4-12, IEC 60068-2-6 Fc, IEC 61000-4-5, IEC 61000-4-2 level 3, IEC 61000-4-4 level 3

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Telemecanique Sensors
MFR # SR2PACK2BD
Zoro # G7688728
Country of Origin France
Category Plug-In Relays

Details

Item	Compact smart relay Zelio Logic - "disco
Coil Volts	24V
Contact Form - Relay	NO Relay Output
Power Consumption - Relay	6 W
Features	Local Display; Reverse Polarity Protection
Standards	IEC 61000-4-6 level 3, IEC 61000-4-3, IEC 60068-2-27 Ea, IEC 61000-4-11, IEC 61000-4-12, IEC 60068-2-6 Fc, IEC 61000-4-5, IEC 61000-4-2 level 3, IEC 61000-4-4 level 3
Ip Degree of Protection	IP20 IEC 60529 terminal block), IP40 IEC 60529 front panel)
Cycle Time	6-90 ms
Operating Altitude	6561.68 ft (2000 m)
Lsb Value	39 mV analogue input circuit
Product or Component Type	compact discovery packs
Discrete Input Number	12 IEC 61131-2 Type 1
Current State 1 Guaranteed	>= 1.2 mA IB...IG used as discrete input circuit), >= 2.2 mA I1...IA and IH...IR discrete input circuit)
Number or Control Scheme Lines	120-120 ladder, 0-200 FBD
Discrete Input Current	4 mA
Relative Humidity	95-95 % without condensation or dripping water
Analogue Input Resolution	8 bits
Immunity To Microbreaks	1 ms
Range of Product	Zelio Logic
Analogue Input Range	0...10 V, 0...24 V
Pollution Degree	2 IEC 61131-2
Analogue Input Number	2
Discrete Input Voltage	24 V DC
Local Display	with
Environmental Characteristic	EMC directive IEC 61000-6-2, EMC directive IEC 61000-6-3, EMC directive IEC 61000-6-4, EMC directive IEC 61131-2 zone B, low voltage directive IEC 61131-2
Input/Output Number	20
Backup Time	10 years 25°C
Analogue Input Type	common mode
Power Dissipation In W	6 W without extension
Clock	without
Ambient Air Temperature For Storage	-40-70°C
Discrete Input Type	resistive
Electrical Durability	AC-12 500000 cycles 230 V, 1.5 A relay output IEC 60947-5-1, AC-15 500000 cycles 230 V, 0.9 A relay output IEC 60947-5-1, DC-12 500000 cycles 24 V, 1.5 A relay output IEC 60947-5-1, DC-13 500000 cycles 24 V, 0.6 A relay output IEC 60947-5-1
Current State 0 Guaranteed	<= 0.5 mA IB...IG used as discrete input circuit)
Voltage State 1 Guaranteed	>= 15 V I1...IA and IH...IR discrete input circuit, >= 15 V IB...IG used as discrete input circuit
Temperature Probe Type	NTC 10k 25°C, NTC 1000k 25°C, KTY81 210/220/221/222/250, Pt 500
Reverse Polarity Protection	with
Supply Voltage Limits	19.2-30 V
Disturbance Radiated/Conducted	class B EN 55022-11 group 1
Input Compatibility	3-wire proximity sensors PNP discrete input
Number of Outputs	8 relay
Counting Frequency	1 kHz discrete input
Contacts Type And Composition	NO relay output
Repeat Accuracy	+/- 2 % 55°C analogue input circuit
Input Impedance	12 kOhm IB...IG used as analogue input circuit, 12 kOhm IB...IG used as discrete input circuit, 7.4 kOhm I1...IA and IH...IR discrete input circuit
[Us] Rated Supply Voltage	24 V
Maximum Supply Current	100 mA without extension)
Maximum Altitude Transport	3048 m
Kit Composition	SR2B201BD, cable PC SR2USB01 for connection to PC
Output Thermal Current	8 A for all 8 outputs relay output
Clock Drift	12 min/year 0-55°C, 6 s/month 25-25°C
Mechanical Durability	10000000 cycles relay output
[Uimp] Rated Impulse Withstand Voltage	4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1
Conversion Time	smart relay cycle time analogue input circuit
Connections - Terminals	screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid, screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid, screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid, screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end
Tightening Torque	0.5 N.m
Response Time	10 ms from state 0 to state 1)relay output, 5 ms from state 1 to state 0)relay output
Pvc Free	Yes
Maximum Permissible Voltage	30 V analogue input circuit
Conversion Error	+/- 5 % 25°C analogue input circuit, +/- 6.2 % 55°C analogue input circuit
Operating Rate In Hz	0.1 Hz at Ie)relay output, 10 Hz no load)relay output
Output Voltage Limits	24...250 V AC relay output), 5...30 V DC relay output)
Switching Capacity In Ma	>= 10 mA 12 V relay output)
Voltage State 0 Guaranteed	<= 5 V I1...IA and IH...IR discrete input circuit, <= 5 V IB...IG used as discrete input circuit
Ambient Air Temperature For Operation	-20-40°C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-55°C IEC 60068-2-1 and IEC 60068-2-2
Operating Distance	10 m between stations, with screened cable (sensor not isolated) analogue input circuit
Overvoltage Category	III IEC 60664-1
Current Rating	4 mA
Operating Temp. Range	-20-40Â°C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 \|\| -20-55Â°C IEC 60068-2-1 and IEC 60068-2-2

Description

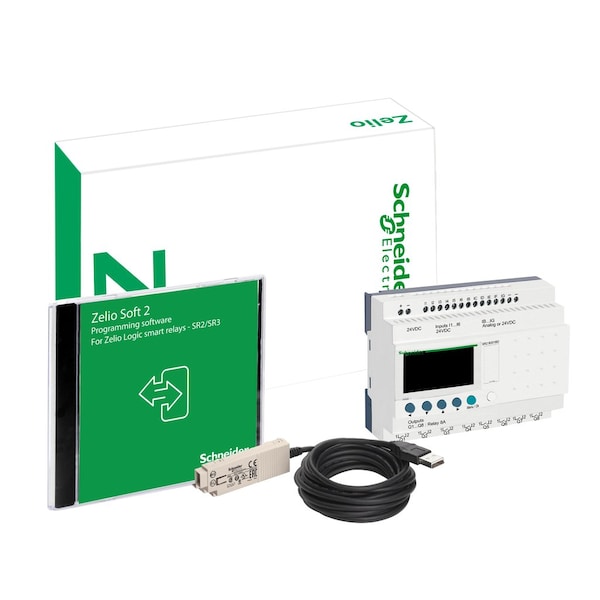

This Schneider Electric Zelio Logic SR2 discovery pack compact smart relay / programmable controller uses a supply voltage of 24 volts direct current, has 20 inputs / outputs with screw-clamp terminals and has an integrated LCD display. This compact programmable relay discovery pack is ideal for discovering the Zelio Logic range of programmable smart relays. It has compact form-factor, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. Discovery package includes one copy of Zelio Soft and one USB cable to connect the relay to your PC. Simple ladder programming, adapted for non-specialists. Discovery package, coming with Zelio Soft programming software, the simplest way to learn and use this relay. Built-in EEPROM flash memory for data backup up to 10 years, easy-to-recover after a power shortage or incident. The main application of this module is industry and building/service sector. This product is certified by C-Tick, GL, UL, CSA and GOST. It meets EN/IEC 60068-2-6 Fc and EN/IEC 61000-4-11 standards. Easy to use, Zelio Logic provides a real alternative solutions based on cabled logic or specific cards.
