Shop All Power Relays
Te Connectivity
V23079B1218B301
Mfr # 1422002-8
Zoro # G601034388
product price: $2.65
/ea
Sold in multiples of 30 for $79.50
$79.50
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Power Consumption - Relay 140 mW
- Electrical Connection - Power Relay Through Hole
- Body Width - Relay 0.283 in
- Body Depth - Relay 0.571 in
- Number of Poles 2
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Te Connectivity
- MFR # 1422002-8
- Zoro # G601034388
- Country of Origin Mexico
- Category Power Relays
Dimensions
Body Width - Relay | 0.283 in |
Body Depth - Relay | 0.571 in |
Body Height - Relay | 0.386 in |
Details

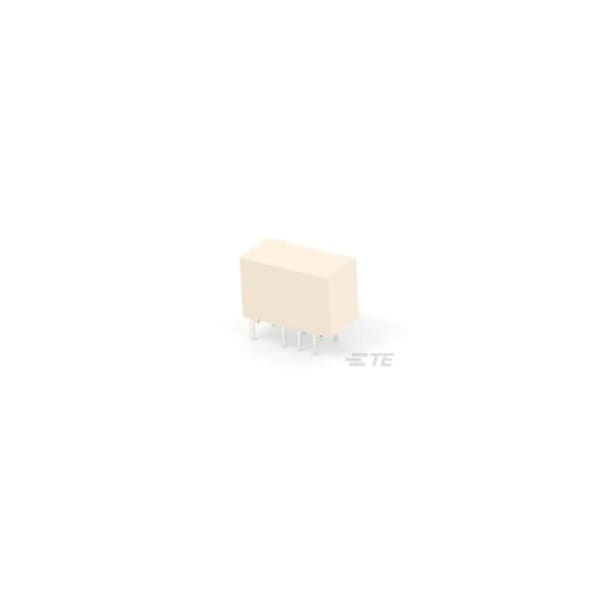

Item - Relay | P2 V23079 Relay |
Power Consumption - Relay | 140 mW |
Electrical Connection - Power Relay | Through Hole |
Number of Poles | 2 |
Features | Bifurcated/Twin Contacts |
Switching Current | 10mA @ .2V |
Contact Voltage Rating | 250 VAC [ 220 VDC ] |
Protection Category | RTIII |
Insulation Creepage | 2.5 mm [ .098 in ] |
Coil Type | Bistable, 2 Coils, Polarized |
Dielectric Voltage | 1000 Vrms Adjacent Contacts; 1500 Vrms Coil and Contact; 1000 Vrms Open Contacts |
Contact Limiting Breaking Current | 2A |
Contact Limiting Continuous Current | 2A |
Switching Voltage | 250 VAC [ 220 VDC ] |
Operating Temp. Range | -40 to 85 °C |
Contact Limiting Short-Time Current | 2A |
Coil Resistance | 41 Ω |
Insulation Clearance | 1.3 mm [ .051 in ] |
Contact Limiting Making Current | 2A |
