  11. V23026A1001B201
Shop All Power Relays
Te Connectivity

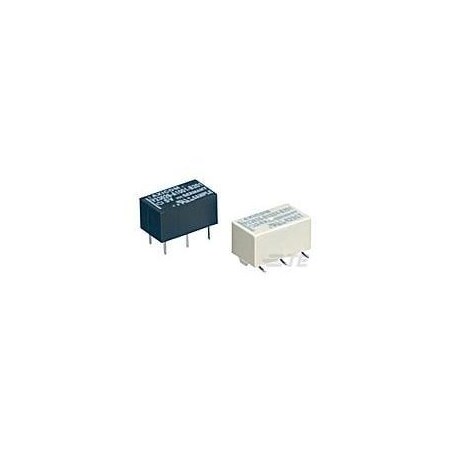

V23026A1001B201

product price: $10.19
/ea
Sold in multiples of 40 for $407.60
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Power Consumption - Relay 65 to 130 mW
  • Electrical Connection - Power Relay Through Hole
  • Body Depth - Relay 0.512 in
  • Body Width - Relay 0.2988 in
  • Number of Poles 1
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Body Depth - Relay 0.512 in
Body Width - Relay 0.2988 in
Body Height - Relay 0.272 in

Details

Item - Relay P1 Relay V23026
Power Consumption - Relay 65 to 130 mW
Electrical Connection - Power Relay Through Hole
Number of Poles 1
Features Bifurcated/Twin Contacts
Operating Temp. Range -40 to 85°C
Contact Limiting Breaking Current 1A
Switching Current 10mA @ .02V
Insulation Creepage .0295 in
Insulation Clearance .0295 in
Contact Limiting Short-Time Current 1A
Contact Voltage Rating 150 VAC, 125 VDC
Contact Limiting Continuous Current 1A
Contact Limiting Making Current 1A
Coil Type Monostable, DC, Polarized
Coil Resistance 370 Ω
Switching Voltage 125 VDC, 150 VAC
Protection Category RTIII
Dielectric Voltage 1500 Vrms Coil and Contact; 500 Vrms Open Contacts
