Shop All Toggle Switches
Te Connectivity

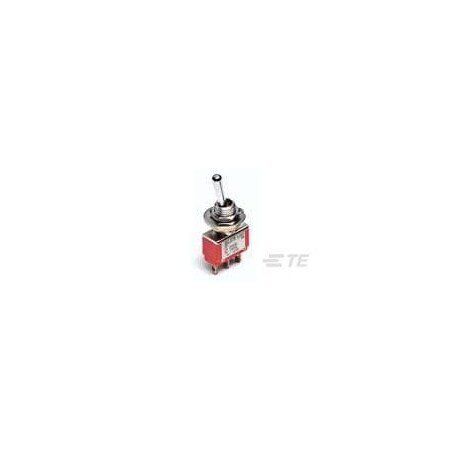

Toggle Switch, Dpdt, Latched, 5A, 28Vdc, Solder Terminal, Short Type Actuator, Through Hole-Right
Mfr # 1-1825138-0
Zoro # G005799210
product price: $7.59
/ea
Sold in multiples of 12 for $91.08
$91.08
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Switch Type Toggle
- Contact Base Material Copper
- Contact Plating Silver
- Toggle Actuation Horizontal
- Process Sealed No
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Te Connectivity
- MFR # 1-1825138-0
- Zoro # G005799210
- Country of Origin Taiwan, Province of China
- Category Toggle Switches
Dimensions
Bushing Length (in) | 0.28 |
Bushing Thread Size | 14614 |
Toggle Length | 6.86 mm [ .27 in ] |
Details
Switch Type | Toggle |
Contact Base Material | Copper |
Contact Plating | Silver |
Toggle Actuation | Horizontal |
Process Sealed | No |
Voltage Rating | 125 VAC, 28 VDC |
Product Type | Switch |
Toggle Style | Baton Short |
Insulation Resistance (MΩ) | 1000 |
Contact Resistance (mΩ) | 10 |
Contact Current Rating (A) | 5 |
Sealed | Yes |
Configuration (Pole-Throw) | Double Pole - Double Throw |
Termination Type | Right Angle |
Dielectric Strength (VAC) | 1000 |
UL Flammability Rating | UL 94V-0 |
Bushing Style | Threaded |
Actuator Finish | Nickel |
Mounting Type | Through Hole |
Seal Type | Terminal Seal (Epoxy) |
Operating Function | On On |
Description
Toggle Switch, Dpdt, Latched, 5A, 28Vdc, Solder Terminal, Short Type Actuator, Through Hole-Right Angle
