Shop All Power Relays
Te Connectivity

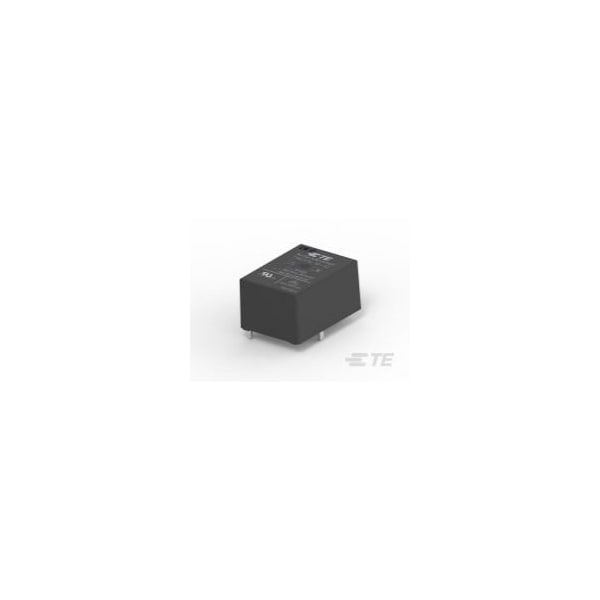

T9GS5L14-24
Mfr # 1558665-7
Zoro # G001033769
Sold in multiples of 20 for $115.00
$115.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Coil Volts 24V DC
- Contact Form - Relay 1 Form C (CO)
- Power Consumption - Relay 900 mW
- Contact Material AgSnO
- Electrical Connection - Power Relay Printed Circuit Terminals
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Te Connectivity
- MFR # 1558665-7
- Zoro # G001033769
- Country of Origin Portugal
- Category Power Relays
Dimensions
Body Depth - Relay | 29 mm |
Body Width - Relay | 0.846 in |
Dimensions | 1.142 x 0.846 x 0.618 in |
Body Height - Relay | 0.618 in |
Details
Item - Relay | Standard Power Relay |
Coil Volts | 24V DC |
Contact Form - Relay | 1 Form C (CO) |
Power Consumption - Relay | 900 mW |
Contact Material | AgSnO |
Electrical Connection - Power Relay | Printed Circuit Terminals |
Features | UL Coil Insulation Class F |
Number of Poles | 1 |
Protection Category | RTIII |
Dielectric Voltage | 2500 Vrms Coil and Contact; 4000 Vrms Open Contacts |
Switching Voltage | 480 VAC |
Mounting Type | Printed Circuit Board |
Coil Resistance | 640 Ω |
Operating Temp. Range | -40 to 105°C |
Contact Voltage Rating | 250 VAC |
Terminal Type | PCB-THT |
Coil Type | Monostable, DC |
Contact Rating | 20 A |
Switching Current | 1A @ 12V |
Description
