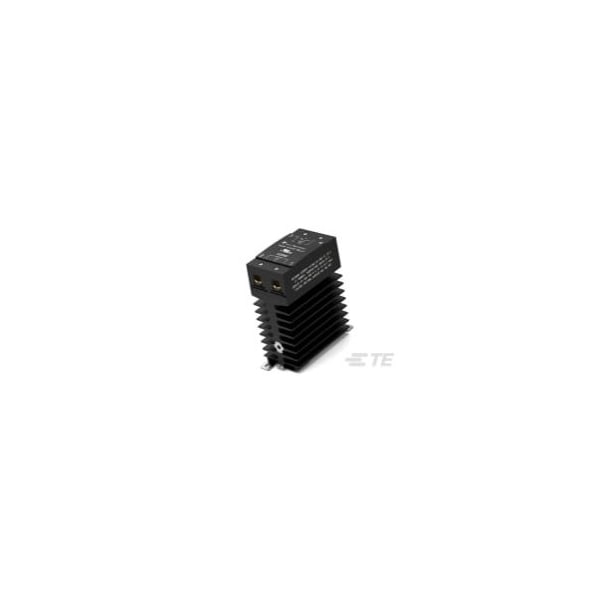

Shop All Solid State Relays
Te Connectivity
SSRM SRS DIN MOUNT 45A 600V AC - AC I/P
Mfr # 7-1393030-5
Zoro # G701034790
product price: $178.99
/ea
Free Shipping & Returns
$178.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Input Voltage 90 to 140 VAC
- Case Color Black
- Contact Arrangement 1 Form A (SPST-NO)
- Coupling Optical
- Housing Style DIN Mount with Integral Heatsink
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Te Connectivity
- MFR # 7-1393030-5
- Zoro # G701034790
- Country of Origin Mexico
- Category Solid State Relays
Dimensions
Dimensions (L x W x H) (Approximate) | 3 x 1.75 x 4.3 in |
Details
Input Voltage | 90 to 140 VAC |
Case Color | Black |
Contact Arrangement | 1 Form A (SPST-NO) |
Coupling | Optical |
Housing Style | DIN Mount with Integral Heatsink |
Power Relay Type | Solid State |
Output Voltage Rating (AC Relays) | 48 to 660 Vrms |
Relay Termination Type | Finger-Safe (IP20) Screw Clamps |
Input Voltage Typical | 90 VAC |
Operating Temperature Range | -40 to 80°C |
R-Switch & slimSSR Relays | Yes |
Output Switching | Zero |
Output Current (Min) | .15 A |
Output Voltage (Max) | 660 V |
Relay Mounting Type | DIN Rail |
Insulation Initial Dielectric Between Contacts & Coil | 4000 Vrms |
Output Type | AC |
Output Current Rating | .15 to 45 Arms |
Switch Arrangement | 1 Form A (SPST-NO) |
