Shop All Solid State Relays
Te Connectivity

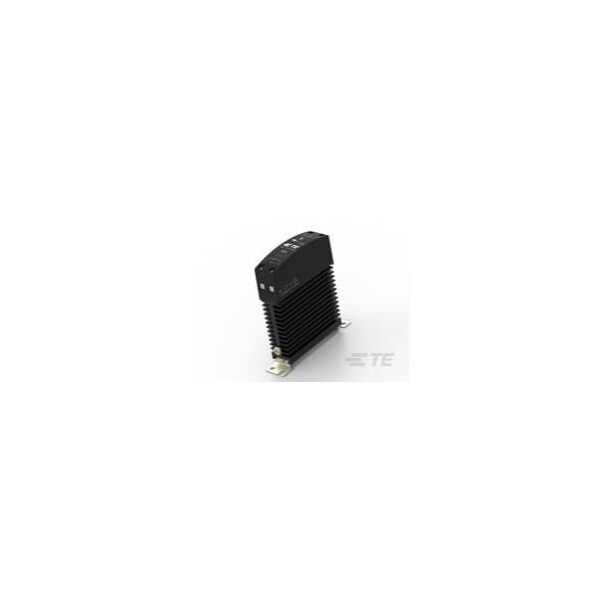

SSRK SRS DIN MOUNT 30A 600V AC - DC I/P
Mfr # 6-1393030-8
Zoro # G801034843
Free Shipping & Returns
$167.99
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Input Voltage 4 to 32 VDC
- Case Color Black
- Operating Temperature Range -30 to 80°C
- Output Switching Zero
- Output Voltage Rating (AC Relays) 48 to 660 Vrms
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Te Connectivity
- MFR # 6-1393030-8
- Zoro # G801034843
- Country of Origin Mexico
- Category Solid State Relays
Dimensions
Dimensions (L x W x H) (Approximate) | 3.24 x .886 x 4.39 in |
Details
Input Voltage | 4 to 32 VDC |
Case Color | Black |
Operating Temperature Range | -30 to 80°C |
Output Switching | Zero |
Output Voltage Rating (AC Relays) | 48 to 660 Vrms |
R-Switch & slimSSR Relays | Yes |
Output Type | AC |
Relay Termination Type | Finger-Safe (IP20) Screw Clamps |
Relay Mounting Type | DIN Rail |
Output Voltage Rating (DC Relays) | 48 to 660 VDC |
Output Current (Min) | .15 A |
Switch Arrangement | 1 Form A (SPST-NO) |
Contact Arrangement | 1 Form A (SPST-NO) |
Output Voltage (Max) | 660 V |
Housing Style | DIN Mount with Integral Heatsink |
Power Relay Type | Solid State |
Coupling | Optical |
Insulation Initial Dielectric Between Contacts & Coil | 4000 Vrms |
Input Voltage Typical | 4 VDC |
Output Current Rating | .15 to 30 Arms |
