Shop All Solid State Relays
Te Connectivity

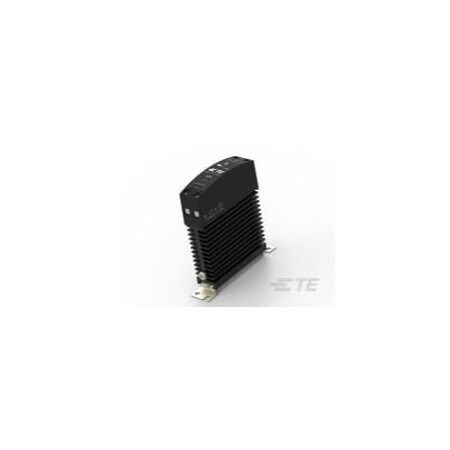

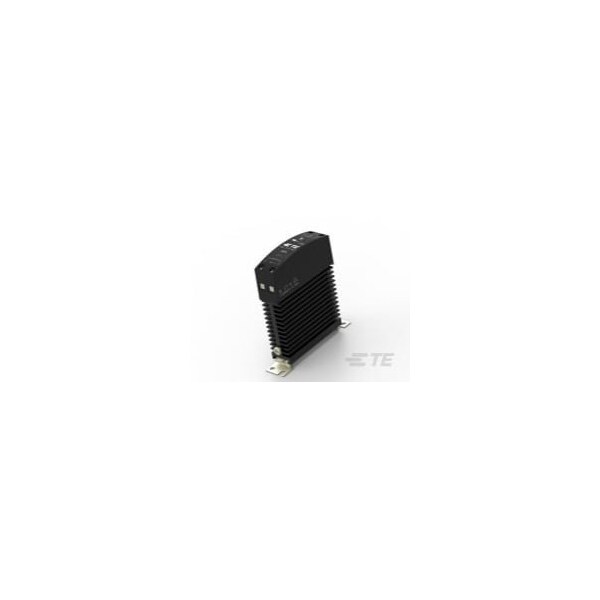

SSRK SRS DIN MOUNT 10A 600V AC - AC I/P
Mfr # 6-1393030-9
Zoro # G401034694
product price: $57.39
/ea
Sold in multiples of 2 for $114.78
$114.78
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Case Color Black
- Output Current (Min) .15 A
- Output Voltage (Max) 660 V
- Switch Arrangement 1 Form A (SPST-NO)
- Coupling Optical
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Te Connectivity
- MFR # 6-1393030-9
- Zoro # G401034694
- Country of Origin Mexico
- Category Solid State Relays
Dimensions
Dimensions (L x W x H) (Approximate) | 3.24 x .886 x 4.39 in |
Details
Case Color | Black |
Output Current (Min) | .15 A |
Output Voltage (Max) | 660 V |
Switch Arrangement | 1 Form A (SPST-NO) |
Coupling | Optical |
Relay Termination Type | Finger-Safe (IP20) Screw Clamps |
Output Voltage Rating (AC Relays) | 48 to 660 Vrms |
Output Current Rating | .15 to 10 Arms |
Output Switching | Zero |
R-Switch & slimSSR Relays | Yes |
Relay Mounting Type | DIN Rail |
Contact Arrangement | 1 Form A (SPST-NO) |
Housing Style | DIN Mount with Integral Heatsink |
Operating Temperature Range | -30 to 80°C |
Output Type | AC |
Insulation Initial Dielectric Between Contacts & Coil | 4000 Vrms |
Power Relay Type | Solid State |
