Shop All Solid State Relays
Te Connectivity

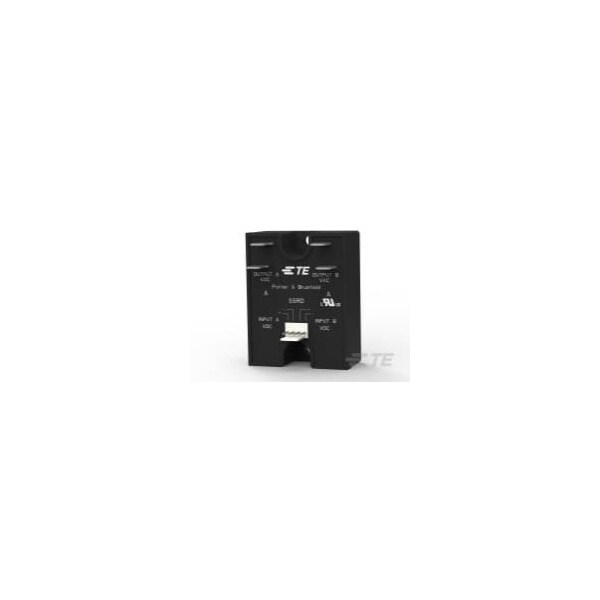

SSRD SRS PANEL MNT 25A 240V AC - DC I/P
Mfr # 1-1393030-4
Zoro # G800973532
Sold in multiples of 100 for $7,039.00
$7,039.00
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Input Voltage 4 to 15 VDC
- Case Color Black
- Power Relay Type Solid State
- Relay Termination Type .25 x .032 Quick Connect Terminals
- Operating Temperature Range -30 to 80°C
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Te Connectivity
- MFR # 1-1393030-4
- Zoro # G800973532
- Country of Origin Mexico
- Category Solid State Relays
Dimensions
Dimensions (L x W x H) (Approximate) | 1.752 x 2.244 x 1.189 in |
Details
Input Voltage | 4 to 15 VDC |
Case Color | Black |
Power Relay Type | Solid State |
Relay Termination Type | .25 x .032 Quick Connect Terminals |
Operating Temperature Range | -30 to 80°C |
Relay Mounting Type | Chassis Mount |
Insulation Initial Dielectric Between Contacts & Coil | 4000 Vrms |
Housing Style | Industry Standard |
R-Switch & slimSSR Relays | No |
Coupling | Optical |
Switch Arrangement | (2) x 1 Form A (SPST-NO) |
Input Voltage Typical | 4 to 15 VDC |
Output Switching | Zero |
Output Voltage (Max) | 280 V |
Output Current Rating | .1 to 25 Arms |
Contact Arrangement | (2) x 1 Form A (SPST-NO) |
Output Current (Min) | .1 A |
Output Voltage Rating (AC Relays) | 24 to 280 Vrms |
Output Type | AC |
