Shop All Solid State Relays
Te Connectivity

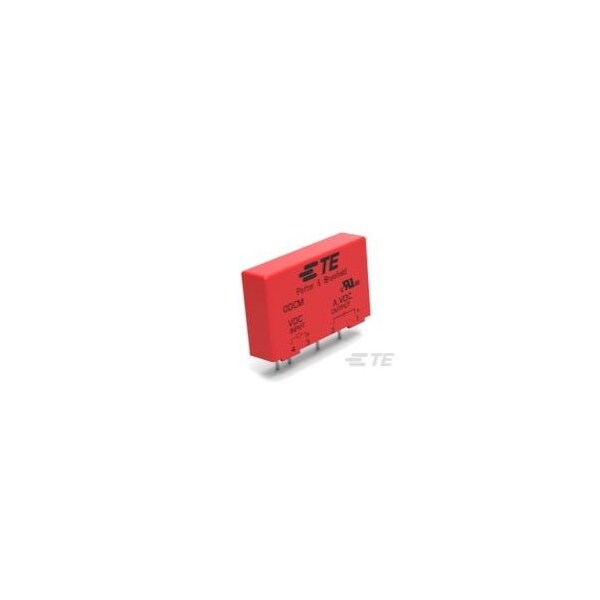

SLIM OUTPUT DC MOD 3A 60V DC-5V DC IP
Mfr # 5-1393028-1
Zoro # G700979795
Sold in multiples of 200 for $5,398.00
$5,398.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Input Voltage 3 to 8 VDC
- Case Color Red
- Output Current Rating .01 to 3 A
- Relay Termination Type Printed Circuit Terminals
- Insulation Initial Dielectric Between Contacts & Coil 4000 Vrms
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Te Connectivity
- MFR # 5-1393028-1
- Zoro # G700979795
- Country of Origin Mexico
- Category Solid State Relays
Dimensions
Dimensions (L x W x H) (Approximate) | 1.713 x .406 x 1.004 in |
Details
Input Voltage | 3 to 8 VDC |
Case Color | Red |
Output Current Rating | .01 to 3 A |
Relay Termination Type | Printed Circuit Terminals |
Insulation Initial Dielectric Between Contacts & Coil | 4000 Vrms |
Switch Arrangement | 1 Form A (SPST-NO) |
Input Voltage Typical | 5 VDC |
Relay Mounting Type | Printed Circuit Board |
Coupling | Optical |
Output Type | DC |
Power Relay Type | Solid State |
Output Voltage (Max) | 60 V |
Output Voltage Rating (DC Relays) | 3 to 60 VDC |
Operating Temperature Range | -30 to 80°C |
Contact Arrangement | 1 Form A (SPST-NO) |
Output Current (Min) | .01 A |
R-Switch & slimSSR Relays | Yes |
Output Switching | Zero |
Housing Style | Slimline |
