  9. SERIES 50 HOUSING GRAY
Shop All Headers & Wire Housings
Te Connectivity

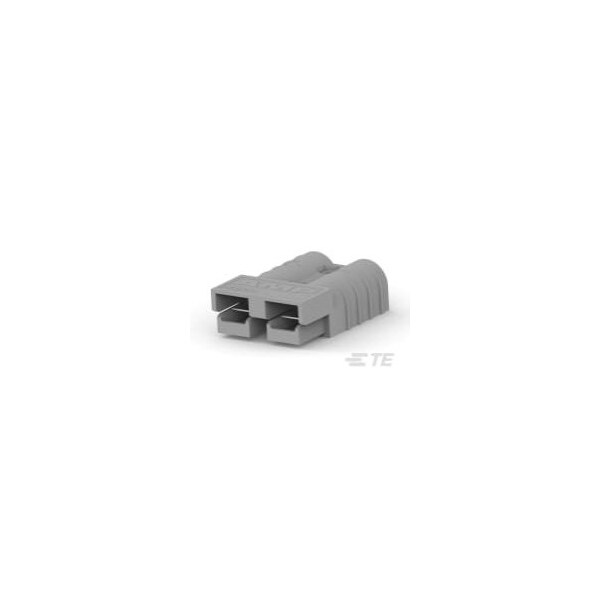

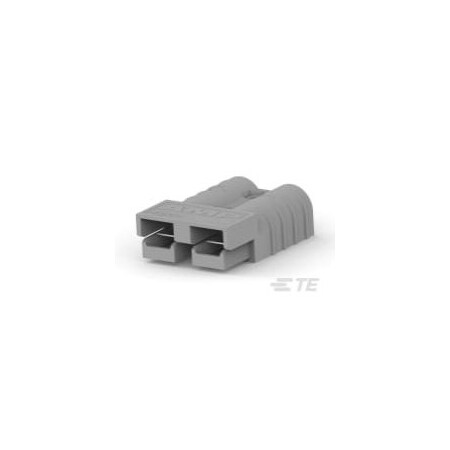

SERIES 50 HOUSING GRAY

product price: $4.45
/ea
Sold in multiples of 20 for $89.00
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Number of Rows 1
  • Width 1.38 in
  • Standards UL E28476; UL Recognized
  • Length 48.23 mm
  • Application Power
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Width 1.38 in
Length 48.23 mm
Height 15.88 mm
Max. Single Wire Size 6 AWG
Min. Single Wire Size 12 AWG
Max. Insulation Dia. 0.394 in

Details

Item Housing
Number of Rows 1
Standards UL E28476; UL Recognized
Application Power
Material Polycarbonate
Color Gray
Connector Terminates To Wire & Cable
Max. Voltage 600V AC/DC
Contact Type Plug
Wire Type Discrete; Stranded
Max. Temp. 105°C
Terminal Type Crimp
Flammability Rating UL 94 V-0
Number of Contacts 2
Hole Center to Center 19.05 mm
