Shop All Sensor Cordsets & Receptacles
Te Connectivity

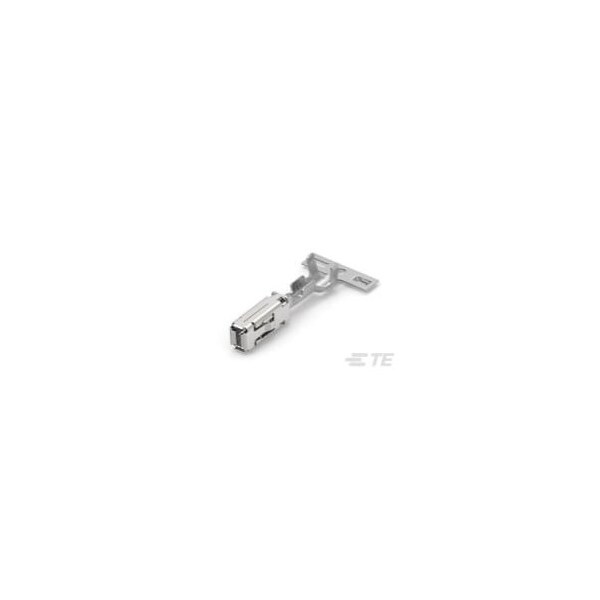

SENSOR FLA-KONT 2 8
Mfr # 967542-1
Zoro # G501052666
product price: $0.19
/ea
Sold in multiples of 4000 for $760.00
$760.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Wire Size .5-1 mm2
- Wire Type Copper
- Mating Tab Width .11 in
- Mating Tab Thickness .031 in
- Terminal & Splice Style Receptacle
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Te Connectivity
- MFR # 967542-1
- Zoro # G501052666
- Country of Origin Switzerland
- Category Sensor Cordsets & Receptacles
Dimensions
Wire Size | .5-1 mm2 |
Mating Tab Width | .11 in |
Wire Size Search | .5 mm², .75 mm², .85 mm², .6 mm², 1 mm² |
Wire Insulation Diameter | .051 to .083 in |
Details
Wire Type | Copper |
Mating Tab Thickness | .031 in |
Terminal & Splice Style | Receptacle |
Crimp Type | F-Crimp |
Seal Type | Family Seal |
Termination Method | Crimp |
Contact Termination Area Plating Material | Tin (Sn) |
Primary Locking Feature | Clean Body |
Typical Current Rating | 15 A |
Agency/Standard | LV 214 |
Receptacle Style | 180° |
Operating Temperature Range | -40 to 130°C |
Interface Plating | Tin (Sn) |
Terminal Transmits | 0 to 24 A (Low Power) |
Sealable | No |
