Te Connectivity

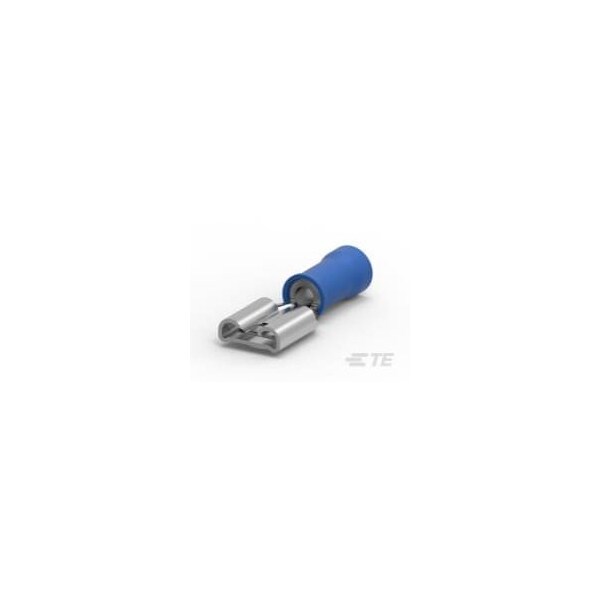

Recept Pidg Faston 16-14 187

product price: $0.50
/ea
Sold in multiples of 250 for $125.00
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Overall Length .8 in
  • Terminal Type Receptacle
  • Insulation Material Nylon
  • Insertion Force Normal
  • Wire Insulation Support With
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Overall Length .8 in
Mating Tab Width .187 in
Wire Insulation Diameter (Max) .17 in

Details

Terminal Type Receptacle
Insulation Material Nylon
Insertion Force Normal
Wire Insulation Support With
Fully Insulated No
RU (UL Component Program) Approved
Terminal Orientation Straight
Crimp Type F-Crimp
Discrete Wire Type Stranded
Operating Temperature Range 105 °C
FASTON Yes
Insulated Yes
Mating Retention Type Dimple
Mating Tab Thickness .02 in
Terminates To Wire & Cable
Receptacle Stock Thickness .016 in
CSA Certified Yes
Disconnect Type Quick Disconnect Pin
Plating Material Tin
Barrel Color Blue
Voltage (Max) 300 V
