Shop All Power Relays
Te Connectivity

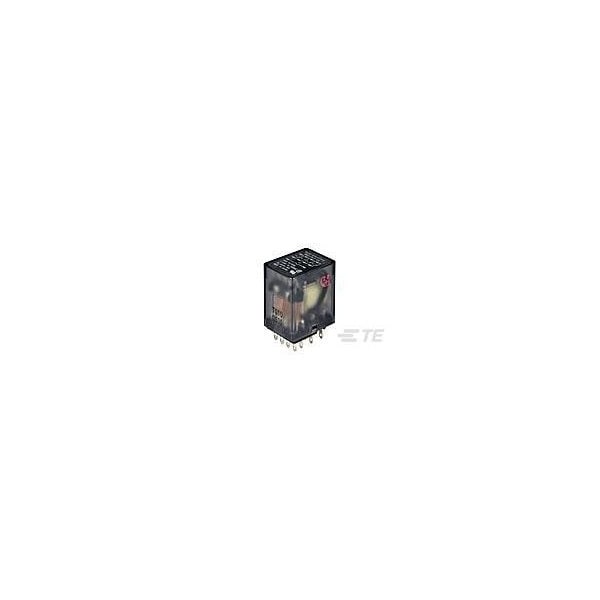

Power/Signal Relay, 4 Form C, 4Pdt, Momentary, 0.075A (Coil), 12Vdc (Coil), 900Mw (Coil), 5A
Mfr # 5-1393122-5
Zoro # G905866234
product price: $18.79
/ea
Sold in multiples of 5 for $93.95
$93.95
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Coil Volts 12V DC
- Contact Form - Relay 4 Form C (CO)
- Power Consumption - Relay 900 mW
- Contact Material AgCdO
- Number of Poles 4
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Te Connectivity
- MFR # 5-1393122-5
- Zoro # G905866234
- Country of Origin China
- Category Power Relays
Dimensions
Body Height - Relay | 1.261 in |
Body Width - Relay | 0.858 in |
Body Depth - Relay | 1.111 in |
Details
Item - Relay | Industrial Panel Plug-In Power Relay |
Coil Volts | 12V DC |
Contact Form - Relay | 4 Form C (CO) |
Power Consumption - Relay | 900 mW |
Contact Material | AgCdO |
Number of Poles | 4 |
Features | UL Coil Insulation Class B |
Contact Limiting Continuous Current | 5A |
Mounting Type | Socket |
Switching Current | 300mA @ 12V |
Coil Resistance | 160 Ω |
Protection Category | RTI |
Contact Limiting Making Current | 5A |
Contact Rating | 0.208333333333333A |
Contact Limiting Breaking Current | 5A |
Terminal Type | Solder, Plug-In |
Operating Temp. Range | -45 to 70°C |
Contact Voltage Rating | 240 VAC |
Coil Type | Monostable, DC |
Contact Limiting Short-Time Current | 5A |
Dielectric Voltage | 1500 Vrms Adjacent Contacts; 1500 Vrms, 1500 V Coil and Contact; 1000 Vrms Open Contacts |
Description
Power/Signal Relay, 4 Form C, 4Pdt, Momentary, 0.075A (Coil), 12Vdc (Coil), 900Mw (Coil), 5A (Contact), Dc Input, Random, Ac/Dc Output, Panel Mount
