Shop All Power Relays
Te Connectivity

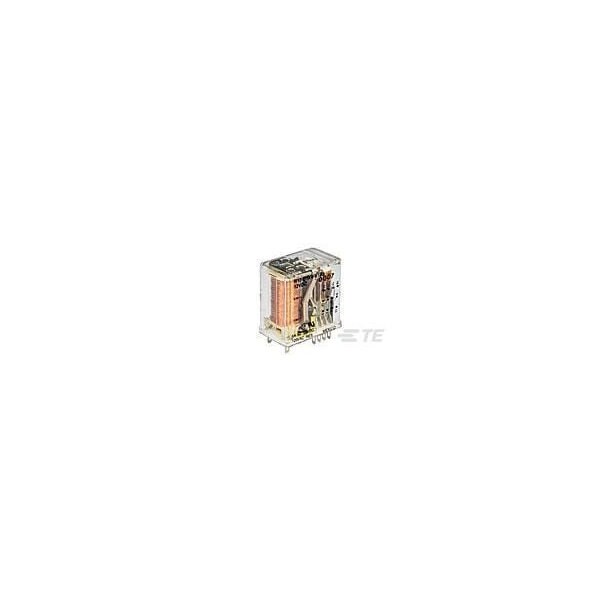

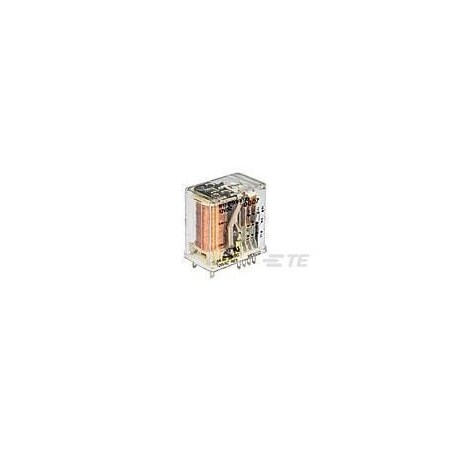

Power/Signal Relay, 2 Form C, Dpdt, Momentary, 0.042A (Coil), 12Vdc (Coil), 900Mw (Coil), 3A
Mfr # 4-1393766-0
Zoro # G005866271
original price:
$35.65
12% off
new price: $31.19
/ea
Sold in multiples of 3 for $93.57
$93.57
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Coil Volts 12V DC
- Contact Form - Relay 2 Form C (CO)
- Power Consumption - Relay 900 mW
- Contact Material Ag
- Number of Poles 2
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Te Connectivity
- MFR # 4-1393766-0
- Zoro # G005866271
- Country of Origin Mexico
- Category Power Relays
Dimensions
Body Height - Relay | 1.189 in |
Body Width - Relay | 0.736 in |
Body Depth - Relay | 1.165 in |
Details
Item - Relay | Industrial Panel Plug-In Power Relay |
Coil Volts | 12V DC |
Contact Form - Relay | 2 Form C (CO) |
Power Consumption - Relay | 900 mW |
Contact Material | Ag |
Number of Poles | 2 |
Features | Sensitive Version |
Switching Current | 100mA @ 12V |
Protection Category | RTI |
Dielectric Voltage | 1000 Vrms Adjacent Contacts; 1000 V, 1000 Vrms Coil and Contact; 500 Vrms Open Contacts |
Contact Limiting Breaking Current | 3A |
Terminal Type | Plug-In, Solder |
Coil Resistance | 185 Ω |
Contact Rating | 0.125A |
Contact Limiting Making Current | 3A |
Contact Limiting Short-Time Current | 3A |
Contact Voltage Rating | 120 VAC |
Mounting Type | Socket |
Operating Temp. Range | -55 to 75°C |
Contact Limiting Continuous Current | 3A |
Coil Type | Monostable, DC |
Description
Power/Signal Relay, 2 Form C, Dpdt, Momentary, 0.042A (Coil), 12Vdc (Coil), 900Mw (Coil), 3A (Contact), Dc Input, Ac/Dc Output, Panel Mount
