Te Connectivity

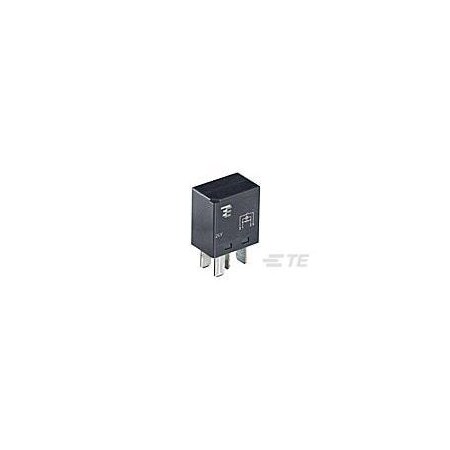

Power/Signal Relay, 1 Form C, Spdt, Momentary, 0.067A (Coil), 24Vdc (Coil), 1340Mw (Coil), 30A
Mfr # 3-1393292-8
Zoro # G805865924
Sold in multiples of 25 for $104.75
$104.75
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Coil Volts 24V DC
- Contact Form - Relay 1 Form C (CO)
- Power Consumption - Relay 1340 mW
- Contact Material Ag Alloy
- Body Depth - Relay 0.906 in
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Te Connectivity
- MFR # 3-1393292-8
- Zoro # G805865924
- Country of Origin Portugal
- Category Power Relays
Dimensions
Body Depth - Relay | 0.906 in |
Body Height - Relay | 1 in |
Body Width - Relay | 0.61 in |
Details
Item - Relay | Micro Relay A/VFMA |
Coil Volts | 24V DC |
Contact Form - Relay | 1 Form C (CO) |
Power Consumption - Relay | 1340 mW |
Contact Material | Ag Alloy |
Mounting Type | Plug-In |
Contact Limiting Breaking Current | 20 A |
Dielectric Voltage | 500 Vrms Coil and Contact; 500 Vrms Open Contacts |
Operating Temp. Range | 105 to 125°C |
Coil Type | Monostable, DC |
Terminal Type | Plug-In, Quick Connect |
Coil Resistance | 430 Ω |
Contact Limiting Continuous Current | 30 A |
Switching Current | 1000mA @ 5VDC |
Contact Rating | 20 A |
Contact Limiting Short-Time Current | 150 A |
Protection Category | RTI |
Contact Limiting Making Current | 120 A |
Description
Power/Signal Relay, 1 Form C, Spdt, Momentary, 0.067A (Coil), 24Vdc (Coil), 1340Mw (Coil), 30A (Contact), 24Vdc (Contact), Dc Input, Random, Ac/Dc Output, Panel Mount
