Shop All Power Relays
Te Connectivity

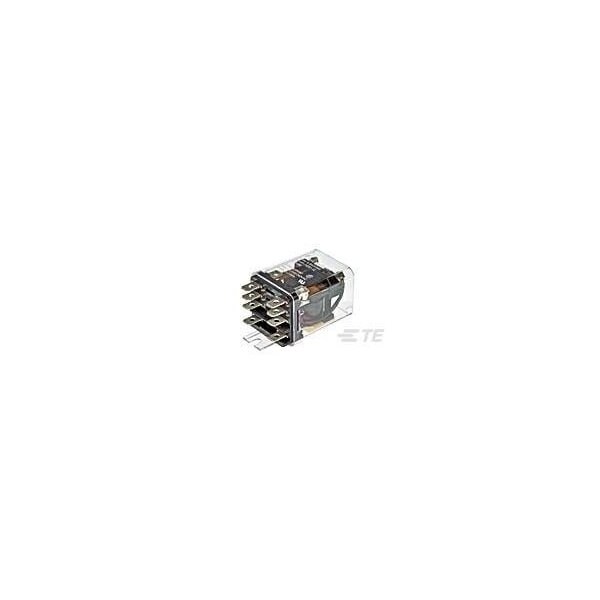

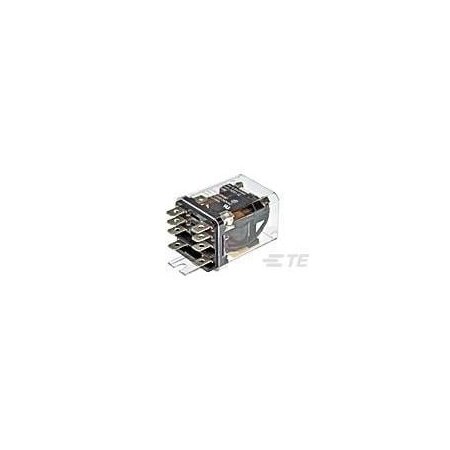

Power/Signal Relay, 1 Form A, 110Vdc (Coil), 1220Mw (Coil), 30A (Contact), Dc Input, Panel Mount
Mfr # 6-1393114-4
Zoro # G905865947
product price: $56.65
/ea
Sold in multiples of 2 for $113.30
$113.30
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Coil Volts 110V DC
- Contact Form - Relay 1 Form A (NO)
- Power Consumption - Relay 1220 mW
- Contact Material AgCdO
- Number of Poles 1
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Te Connectivity
- MFR # 6-1393114-4
- Zoro # G905865947
- Country of Origin Mexico
- Category Power Relays
Dimensions
Body Width - Relay | 1.531 in |
Body Height - Relay | 1.405 in |
Body Depth - Relay | 1.97 in |
Details
Item - Relay | Industrial Panel Plug-In Power Relay |
Coil Volts | 110V DC |
Contact Form - Relay | 1 Form A (NO) |
Power Consumption - Relay | 1220 mW |
Contact Material | AgCdO |
Number of Poles | 1 |
Features | UL Coil Insulation Class B |
Dielectric Voltage | 3750 Vrms Adjacent Contacts; 3750 V Coil and Contact; 1200 Vrms Open Contacts |
Contact Rating | 30 A |
Contact Limiting Short-Time Current | 30 A |
Coil Type | Monostable, DC |
Contact Limiting Making Current | 30 A |
Mounting Type | Panel Mount, Bracket |
Switching Current | 300mA @ 12V |
Terminal Type | Solder, Quick Connect |
Protection Category | RTI |
Contact Voltage Rating | 240 VAC |
Contact Limiting Breaking Current | 30 A |
Operating Temp. Range | -45 to 70°C |
Contact Limiting Continuous Current | 30 A |
Coil Resistance | 100000 Ω |
