Shop All Headers & Wire Housings
Te Connectivity

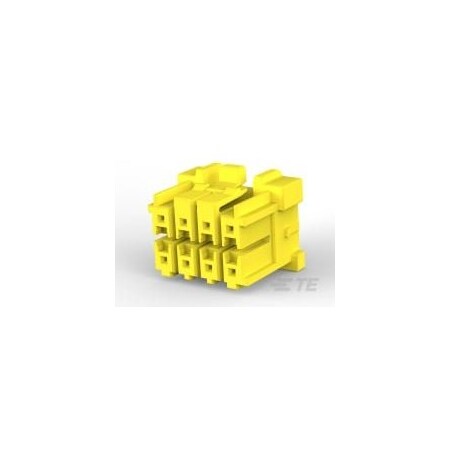

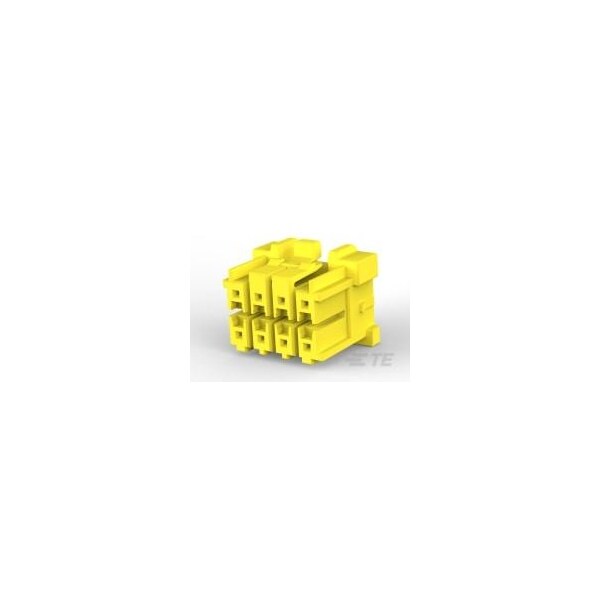

PLUG HOUSING 8POS KEYING-D NEW GIC3.3
Mfr # 4-1971905-4
Zoro # G600957183
Sold in multiples of 400 for $92.00
$92.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Number of Rows 2
- Application Power, Signal
- Material Glass-Filled Polyamide
- Color Yellow
- Hole Center to Center 3.3 mm
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Te Connectivity
- MFR # 4-1971905-4
- Zoro # G600957183
- Country of Origin China
- Category Headers & Wire Housings
Dimensions
Min. Single Wire Size | 24 AWG |
Max. Single Wire Size | 20 AWG |
Details
Item | Plug |
Number of Rows | 2 |
Application | Power, Signal |
Material | Glass-Filled Polyamide |
Color | Yellow |
Hole Center to Center | 3.3 mm |
Contact Finish | Tin Plated |
Max. Temp. | 105°C |
Connector Terminates To | Wire & Cable |
Max. Voltage | 250V AC/DC |
Number of Contacts | 8 |
Terminal Type | Crimp |
Current Rating | 4 A |
Contact Type | Receptacle |
Terminal Finish | Tin Plated |
Contact Plating Thickness | 2 µm |
Flammability Rating | UL 94 V-0 |
