Shop All Headers & Wire Housings
Te Connectivity

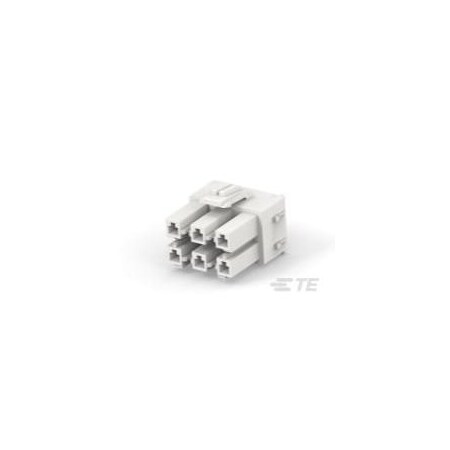

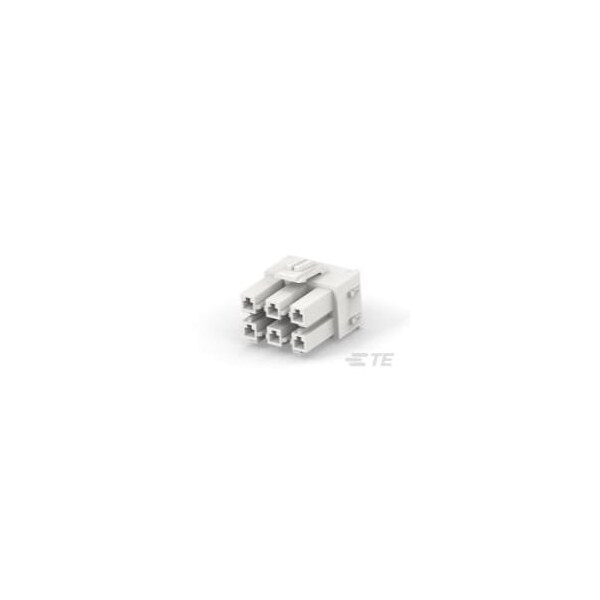

PDL 6P PLUG 6.5 D/R(GWT) NAT
Mfr # 2005252-1
Zoro # G401068361
Sold in multiples of 2000 for $1,440.00
$1,440.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Material Polyamide
- For Use With 179839 Header; 177914 or 177915 Contacts; 316062-1 Double Lock Plate
- Number of Rows 2
- Color Natural
- Standards USR; CNR; C22.2 No. 182.3; UL 1977
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Te Connectivity
- MFR # 2005252-1
- Zoro # G401068361
- Country of Origin China
- Category Headers & Wire Housings
Details
Item | Housing |
Material | Polyamide |
For Use With | 179839 Header; 177914 or 177915 Contacts; 316062-1 Double Lock Plate |
Number of Rows | 2 |
Color | Natural |
Standards | USR; CNR; C22.2 No. 182.3; UL 1977 |
Application | Power, Signal |
Wire Type | Discrete; Stranded |
Number of Contacts | 6 |
Max. Temp. | 65°C |
Max. Voltage | 300V AC |
Hole Center to Center | 6.5 mm |
Terminal Type | Crimp |
Connector Terminates To | Wire & Cable |
Contact Type | Socket |
Flammability Rating | UL 94 V-0 |
