Shop All Solid State Relays
Te Connectivity

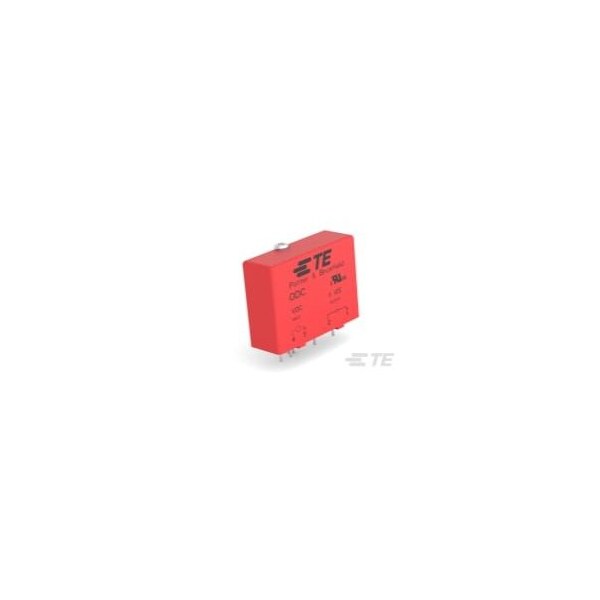

OUTPUT DC MODULE 1A 250V DC-24V DC IP
Mfr # 7-1393028-6
Zoro # G500980274
Sold in multiples of 200 for $6,098.00
$6,098.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Input Voltage 18 to 32 VDC
- Case Color Red
- Output Current Rating .01 to 1 A
- Output Switching Zero
- Output Voltage Rating (DC Relays) 3 to 250 VDC
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Te Connectivity
- MFR # 7-1393028-6
- Zoro # G500980274
- Country of Origin Mexico
- Category Solid State Relays
Dimensions
Dimensions (L x W x H) (Approximate) | 1.697 x .598 x 1.248 in |
Details
Input Voltage | 18 to 32 VDC |
Case Color | Red |
Output Current Rating | .01 to 1 A |
Output Switching | Zero |
Output Voltage Rating (DC Relays) | 3 to 250 VDC |
Coupling | Optical |
Relay Termination Type | Printed Circuit Terminals |
Relay Mounting Type | Printed Circuit Board |
R-Switch & slimSSR Relays | No |
Output Type | DC |
Contact Arrangement | 1 Form A (SPST-NO) |
Housing Style | Industry Standard |
Switch Arrangement | 1 Form A (SPST-NO) |
Power Relay Type | Solid State |
Output Current (Min) | .01 A |
Output Voltage (Max) | 250 V |
Input Voltage Typical | 24 VDC |
Operating Temperature Range | -30 to 80°C |
Insulation Initial Dielectric Between Contacts & Coil | 4000 Vrms |
