Te Connectivity

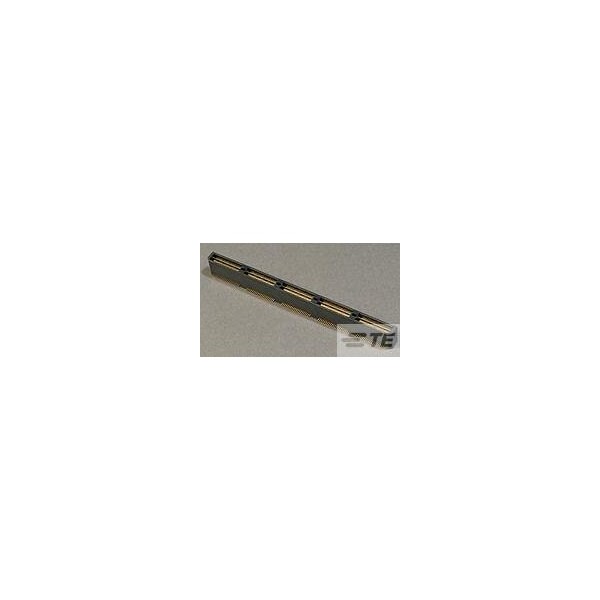

MSB0.80PL11ASY200FL - 10 -TY
Mfr # 1658015-5
Zoro # G601067133
Sold in multiples of 3 for $74.97
$74.97
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Material Liquid Crystal Polymer
- Max. Voltage 125V AC
- Application Signal
- Series Mictor SB
- Height 10.06 mm
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Te Connectivity
- MFR # 1658015-5
- Zoro # G601067133
- Country of Origin China
- Category PCB Connectors
Dimensions
Height | 10.06 mm |
Details
Item | PCB Mount Header |
Material | Liquid Crystal Polymer |
Max. Voltage | 125V AC |
Application | Signal |
Series | Mictor SB |
Features | With Boss |
For Use With | Receptacle Assembly |
Max. Temp. | 125°C |
Hole Center to Center | 0.8 mm |
Contact Type | Pin |
Contact Finish | Select Gold Plated |
Current Rating | 9.5 A; 1.25 A |
Terminal Finish | Gold Plated |
Number of Contacts | 200 |
Connector Terminates To | Printed Circuit Board |
Number of Rows | 2 |
Terminal Type | Surface Mount |
Contact Plating Thickness | 0.25 µm |
Connection Material | Phosphor Bronze |
