  9. MMCX STRAIGHT PCB PLUG
Shop All Coaxial Cables
Te Connectivity

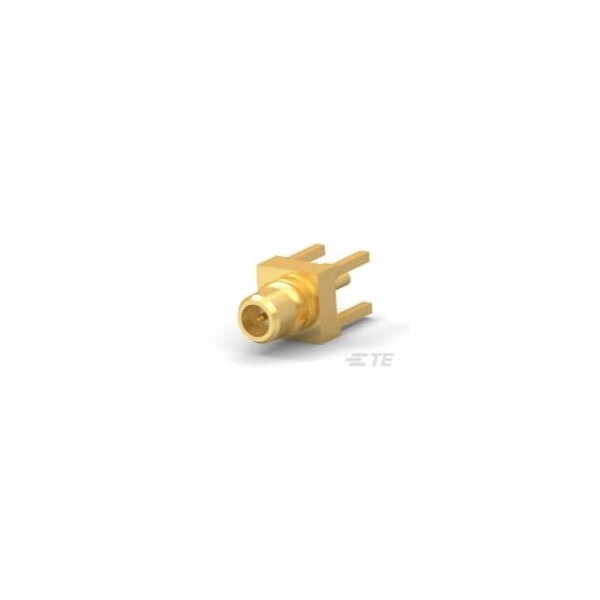

MMCX STRAIGHT PCB PLUG

product price: $11.65
/ea
Sold in multiples of 10 for $116.50
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Impedance 50 Ω
  • Connector System Cable-to-Board
  • RF Connector Mated Outer Diameter (Approximate) .106 in
  • Termination Method to Printed Circuit Board Surface Mount
  • Body Material Brass
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

RF Connector Mated Outer Diameter (Approximate) .106 in
PCB Tail Length .118 in
Height above PCB .177 in

Details

Impedance 50 Ω
Connector System Cable-to-Board
Termination Method to Printed Circuit Board Surface Mount
Body Material Brass
Center Contact Plating Material Gold
Connector Mounting Type Panel
PCB Mount Orientation Vertical
Connector Style Plug
Operating Temperature Range -65 -165 °C
Connector Interface MMCX
Center Contact Material Brass
Number of Positions 1
RF Connector Coupling Mechanism Push-On
RF Contact Captivation Method Mechanical
Body Plating Material Gold
Operating Frequency 6 GHz
Detent Without
Connector & Contact Terminates To Printed Circuit Board
Port Configuration Single Port
Dielectric Material PTFE
Number of Coaxial Contacts 1
