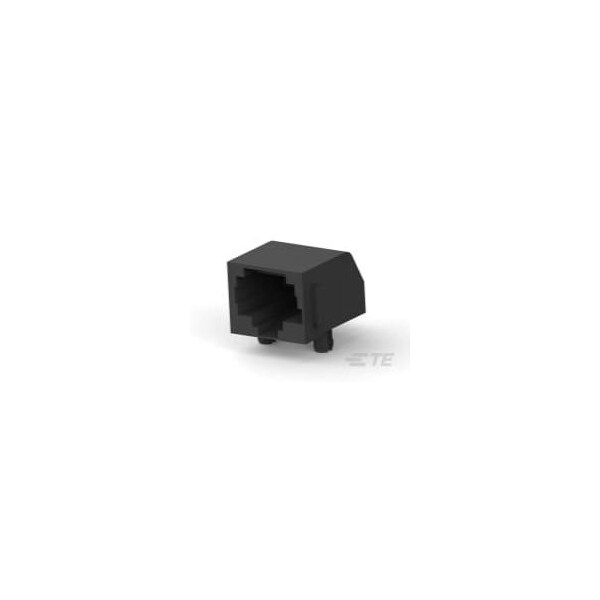

MJ LPF R/A 8P/8C SMT PNL STOP

Name: MJ LPF R/A 8P/8C SMT PNL STOP
Brand: Te Connectivity
SKU: G800966725
Price: 94.50 USD
Availability: InStock

$3.15

/ea

Sold in multiples of 30 for $94.50

Free Shipping on orders over $50

Free 30-Day Returns

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Accepted Payment Options

Net 30

Product Information

PCB Tail Length	.14 in
Connector Height	.5 in

Latch Orientation	Standard - Latch Down
Number of Contacts Loaded	8
Modular Jack & Plug Interface Type	RJ45
Operating Temperature Range	-40 to 185 °F
Connector Product Type	Connector Assembly
Port Configuration	Single Port
Contact Mating Area Plating Material	Gold
Connector Contact Density	Standard
Circuit Application	Signal
Contact Underplating Material	Nickel
Performance Category	Cat 3
Entry Location	Side
UL Flammability Rating	UL 94V-0
Port Matrix Configuration	1 x 1
Profile	Low
Contact Current Rating (Max)	.2 A, 1.5 A
Contact Base Material	Phosphor Bronze
PCB Mount Orientation	Right Angle
Panel Mount Feature Type	Panel Stops
Housing Color	Black
Shielded	No
Number of Positions	8
Modular Jacks & Plugs Products	RJ Type Jacks & Plugs
Connector Mounting Type	Panel
Housing Material	High Temperature Nylon
Connector Style	Jack
Connectors & Connector Components Type	Connector
Panel Mount Feature	With
Centerline (Pitch)	.04 in
PCB Thickness (Recommended)	.066 in
Termination Method to Printed Circuit Board	Surface Mount
Keyed	Yes
Connector & Contact Terminates To	Printed Circuit Board
Contact Mating Area Plating Material Thickness	50 µin
PCB Contact Termination Area Plating Material	Tin
