Shop All Strain Relief Connector
Te Connectivity

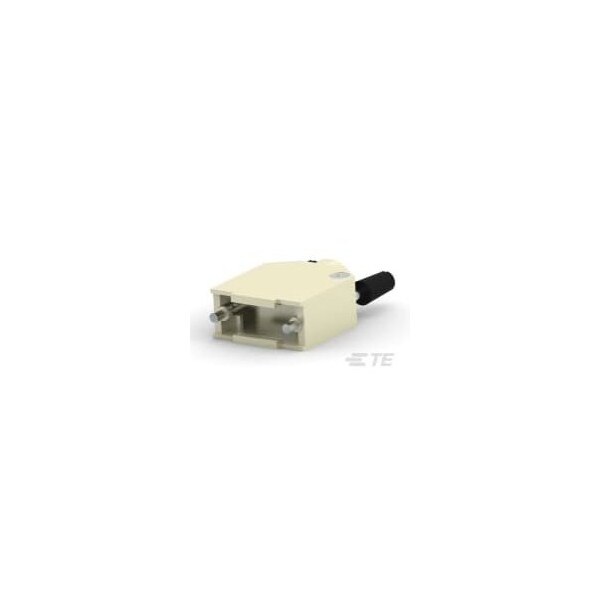

METAL BACKSHELL 9 WAY TOP E
Mfr # 1478762-9
Zoro # G001017448
product price: $8.59
/ea
Sold in multiples of 15 for $128.85
$128.85
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Number of Positions 9
- Connector & Contact Terminates To Wire & Cable
- Cable Insulation Diameter .158 “ .512 in
- Slide Latch Without
- Cover Flammability Rating UL 94V-0
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Te Connectivity
- MFR # 1478762-9
- Zoro # G001017448
- Country of Origin Denmark
- Category Strain Relief Connector
Dimensions
Cable Insulation Diameter | .158 “ .512 in |
Thread Size | 14702 |
Shell Size | 1 |
Details
Number of Positions | 9 |
Connector & Contact Terminates To | Wire & Cable |
Slide Latch | Without |
Cover Flammability Rating | UL 94V-0 |
Shielded | Yes |
Backshell Material | Zinc |
Backshell Plating Material | Nickel |
Cable Clamp Material | Die Cast |
Cable Exit Angle | 180 |
Grommets per Set | 4 |
Accessory Type | Backshell |
Cable Clamp Type | Two-Piece RFI/EMI Shield |
Grommets | With |
Shield Plating Material | Nickel |
