Shop All Sensor Cordsets & Receptacles
Te Connectivity

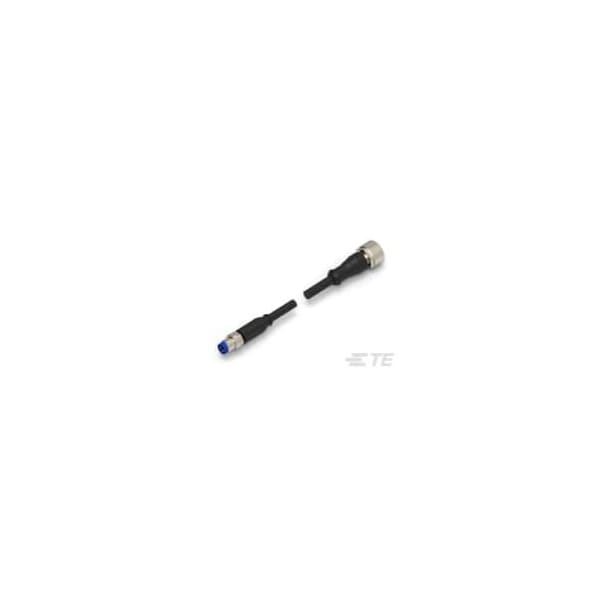

M8 strgt plug to M12 strgt socket AA
Mfr # 1-2273109-4
Zoro # G200945320
product price: $20.99
/ea
Sold in multiples of 4 for $83.96
$83.96
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Jacket Color Black
- Wire Size 22 AWG
- Housing Material Plastic
- Keying AA
- Configuration Double-Ended
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Te Connectivity
- MFR # 1-2273109-4
- Zoro # G200945320
- Country of Origin Germany
- Category Sensor Cordsets & Receptacles
Dimensions
Wire Size | 22 AWG |
Thread Size | M8 x M12 |
Overall Outside Cable Diameter | .188 in |
Cable Assembly Length | 1500 mm |
Details
Jacket Color | Black |
Housing Material | Plastic |
Keying | AA |
Configuration | Double-Ended |
Connector Type | Plug/Receptacle |
Product Type | Cable Assembly |
Contact Current Rating | 4A |
Mounting Angle | Straight-Straight |
Wire Color | Brown, White, Blue, Black |
Operating Temperature Range | -30 to 80°C |
Number of Positions | 4 |
Cable Assembly Type | M8 to M12 |
Shielded | No |
Connector Color | Blue |
Cable Color | Black |
Insulation Material | PVC |
Operating Voltage | 34 VDC, 34 VAC |
Cable Type | PVC |
