Shop All Headers & Wire Housings
Te Connectivity

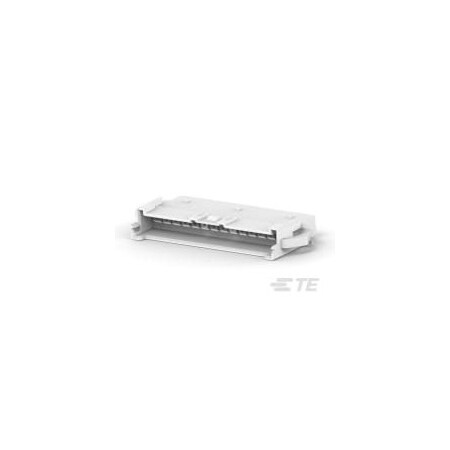

HSG REC PANEL MOUNT SINGLE ROW EP2.5
Mfr # 1-1969590-4
Zoro # G500955289
product price: $0.19
/ea
Sold in multiples of 500 for $95.00
$95.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Color White
- Min. Single Wire Size 26 AWG
- Max. Single Wire Size 22 AWG
- Number of Rows 1
- Max. Voltage 250V AC
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Te Connectivity
- MFR # 1-1969590-4
- Zoro # G500955289
- Country of Origin China
- Category Headers & Wire Housings
Dimensions
Min. Single Wire Size | 26 AWG |
Max. Single Wire Size | 22 AWG |
Height | 6.6 mm |
Width | 0.715 in |
Length | 37.5 mm |
Max. Insulation Dia. | 0.067 in |
Details
Color | White |
Item | Connector |
Number of Rows | 1 |
Max. Voltage | 250V AC |
Application | Power, Signal |
For Use With | Plug Housing |
Connector Type | Receptacle |
Hole Center to Center | 2.5 mm |
Features | Panel Mount Feature |
Max. Temp. | 105°C |
Material | Nylon |
Connection Material | Brass |
Terminal Type | Crimp |
Number of Contacts | 14 |
Flammability Rating | UL 94 V-0 |
Contact Type | Pin |
Current Rating | 7.5 A |
Connector Terminates To | Wire & Cable |
